Vehicle Exploded View - DERBI SENDA SM 50 Senda SM X-Trem 50 2T E2 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

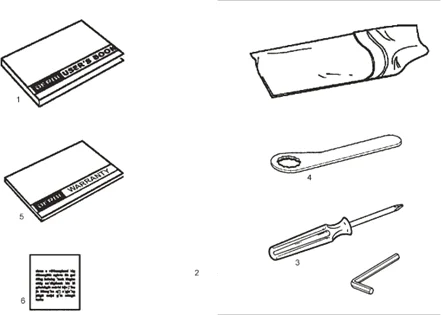

Chassis : 66.15 GROUPE COMPLEMENTAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1046/Senda_SM_X-Trem_50_2T_E2_2010_66.15.png)
1 |
MANUAL INSTRUCCION.X-TREM ¦06 |
||||||
|
1 |
861781 - LIVRET D’UTIL.ET ENTRET. More informationQuantity required : 0 |
||||||
|
2 |
00H05101561 - TROUSSE A OUTILS More informationQuantity required : 0 |
||||||
|
3 |
|
||||||
|
4 |
00H05101011 - CLE A BOUGIE More informationQuantity required : 0 |
||||||
|
5 |
Carnet de garantie |
||||||
|
6 |
00H01861111 - PLACA CARACTER.SM X-TREM ¦06 More informationQuantity required : 0 |
||||||
|
6 |
00H01862111 - ADHESIF More informationQuantity required : 0 |
||||||
|
6 |
00H04640141 - ADHESIF More informationQuantity required : 0 |
||||||
|
6 |
00H06365731 - CALCA ANTIMAN.SENDA X-TREM ¦06 More informationQuantity required : 0 |
||||||
|
6 |
00H06366731 - CALCA ANTIMAN.X-TREM ¦06 ESC More informationQuantity required : 0 |
||||||
|
6 |
863610 - ADHESIF More informationQuantity required : 0 |
||||||
|
6 |
863624 - PLAQUE More informationQuantity required : 0 |
