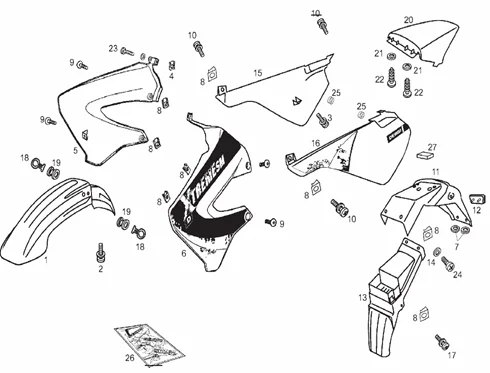

Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2007 E2 4ver

	P2R reference	188717
	Maker reference	00H007170235

00H007170235 - GARDE-BOUE AVANT

	P2R reference	188718
	Maker reference	00H007190225

00H007190225 - GARDE-BOUE AVANT RGE

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462

	P2R reference	188771
	Maker reference	86357400WA55

86357400WA55 - R-SCTO.TAPA DL.DR.SM X-TREM AZL.JAC.07

	P2R reference	188720
	Maker reference	00H04410773

00H04410773 - TAPA DLN.DCHA.BLNCA.DRD EDITON

	P2R reference	188772
	Maker reference	86357400WN05

86357400WN05 - R-SCTO.TAPA DL.DR.SM X-TREM NGR.OMB.07

	P2R reference	188773
	Maker reference	86357500WA55

86357500WA55 - R-SCTO.TAPA DL.IZ.SM X-TREM AZL.JAC.07

	P2R reference	188774
	Maker reference	86357500WB05

86357500WB05 - R-SCTO.TAPA DL.IZ.SM X-TREM BL.CY.07

	P2R reference	188775
	Maker reference	86357500WN05

86357500WN05 - R-SCTO.TAPA DL.IZ.SM X-TREM NGR.OMB.07

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63923
	Maker reference	00F05900041

SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041

	P2R reference	64299
	Maker reference	00H00712341

MUDGUARD - REAR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171

	P2R reference	187510
	Maker reference	00H00505074

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

	P2R reference	188776
	Maker reference	86357800WN05

86357800WN05 - R-SCTO.TAP.LAT.DR.SM X-TREM NGR.OMB.07

	P2R reference	187510
	Maker reference	00H00505074

00H00505074 - TAPA LAT.DR.SENDA SM NEGRA

	P2R reference	188415
	Maker reference	00H00505084

00H00505084 - TAPA LAT.IZ.SENDA SM 2000 NEGR

	P2R reference	65008
	Maker reference	00H05900021

SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021

	P2R reference	64668
	Maker reference	00H02201591

FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021

	P2R reference	188681
	Maker reference	00H006181665

00H006181665 - DOSSERET SELLE

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226

	P2R reference	63681
	Maker reference	000110514015

SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000

	P2R reference	63696
	Maker reference	000120612005

00012061200 - VIS A TETE RONDE A FENTES C

	P2R reference	188284
	Maker reference	00H00501761

00H00501761 - SILENTBLOC

	P2R reference	188777
	Maker reference	86358600WA5

86358600WA5 - R-CTO.KIT CALCAS SM X-TREM AZUL '07

	P2R reference	188778
	Maker reference	86358600WB0

86358600WB0 - R-CTO.KIT CALCAS SENDA SM BLANCA

	P2R reference	188779
	Maker reference	86358600WN0

86358600WN0 - R-CTO.KIT CALCAS SM X-TREM NGR.'07

	P2R reference	188419
	Maker reference	00H05900621

00H05900621 - ESPUMA ADHESIVA DE 5MMX360MM
