Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM X-TREM 2003 2a EDICION
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

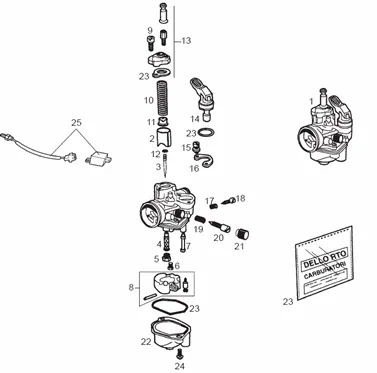

Tables : 19 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1045/SENDA_SM_X-TREM_2003_2a_EDICION_19.png)
1 |
00H03239011 - ENSEMBLE CARBURATEUR More informationQuantity required : 1 |
||||||
|
1 |
00H03245011 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
2 |
00F03201211 - BOISSEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/7/img/64077.jpg)
3 |
NEEDLE FOR CARB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, GPR 1998>2004 -00G03201431- More informationQuantity required : 1 |
||||||
|
4 |
CM106217 - MELANGEUR 211-GA More informationQuantity required : 1 |
||||||
|
5 |
00G03208031 - GLICEUR PRINCIPAL55 More informationQuantity required : 1 |
||||||
|
5 |
00H03207031 - GICLEUR PRINCIPAL 65 More informationQuantity required : 1 |
||||||
|
6 |
CM102104 - GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
|
7 |
00H03203481 - R-GICLEUR D ENTREE D'AIR 45 More informationQuantity required : 1 |
||||||
|
8 |
00H03202281 - R-FLOTTEUR. More informationQuantity required : 1 |
||||||
|
9 |
00G03200061 - R-BOUL.SER.COUV.CHAMBRE MEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/6/img/66626.jpg)
10 |
SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/ GILERA 50 RCR, SMT, STALKER, RUNNER -479882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
11 |
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
12 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872- More informationQuantity required : 1 |
||||||
|
13 |
00H03202231 - COUVERCLE CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/1/img/73241.jpg)
14 |
CHOKE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -CM146201- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/2/img/64072.JPG)
15 |
00G03200541 - R-BOULON SER.START.AUTOM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/3/img/64073.jpg)
16 |
CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/4/img/64074.jpg)
17 |
00G03200721 - R-RESSORT REG.AIR MIN. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/5/img/64075.jpg)
18 |
00G03200731 - R-VIS REG.AIR MIN. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
19 |
152608 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/3/img/64113.jpg)
20 |
SCREW - IDLE SPEED SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, GSM, H@K, ZULU 1998>2005 -00G04100131- More informationQuantity required : 1 |
||||||
|
21 |
00G04100741 - R-BOUTON VIS REGL.VALV.ESS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/2/img/69522.JPG)
22 |
847519 - CUVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/2/img/66972.jpg)
23 |
DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409- More informationQuantity required : 1 |
||||||
|
24 |
00G03201091 - R-BOUL.SERG.VASE ESSENC. More informationQuantity required : 1 |
||||||
|
25 |
00H06001151 - KIT CHAUFFE CARBURATEUR More informationQuantity required : 1 |
