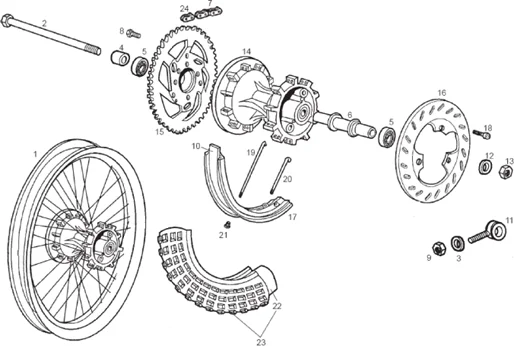

Vehicle Exploded View - DERBI SENDA SM 50 Senda SM X-Race 50 2T E2 2010 DERBI

Chassis : 66.10 ROUE AR
Roue AR
Search
86206R - ROUE AR

1
P2R reference P2R reference 69946
Maker reference Maker reference 86206R

86206R - ROUE AR

More information

Quantity required : 0
REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 mm -00H013042025-

2
P2R reference P2R reference 64484
Maker reference Maker reference 00H013042025

REAR WHEEL AXLE/SWINGING ARM AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> APRILIA 50 SX, RX 2006> Ø 12 MM -00H013042025-

More information

Quantity required : 0
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

3
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

More information

Quantity required : 0
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -867303-

4
P2R reference P2R reference 70324
Maker reference Maker reference 867303

SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -867303-

More information

Quantity required : 1
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016-

5
P2R reference P2R reference 69410
Maker reference Maker reference 847016

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016-

More information

Quantity required : 0
REAR WHEEL BEARING SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01304091-

6
P2R reference P2R reference 64483
Maker reference Maker reference 00H01304091

REAR WHEEL BEARING SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H01304091-

More information

Quantity required : 0
Chain 1/2" x 1/4" - 130 links "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>, RX 2006>, SX 2006>/GILERA 50 SMT 2003>, RCR 2003> -B046219-

7
P2R reference P2R reference 72856
Maker reference Maker reference B046219

CHAIN 1/2" X 1/4" - 130 LINKS "PIAGGIO GENUINE PART" APRILIA 50 RS4 2011>, RX 2006>, SX 2006>/GILERA 50 SMT 2003>, RCR 2003> -B046219-

More information

Quantity required : 0
00002182000 - BOULON TETE HEX.8M125X20

8
P2R reference P2R reference 63626
Maker reference Maker reference 000021820005

00002182000 - BOULON TETE HEX.8M125X20

More information

Quantity required : 0
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

9
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

More information

Quantity required : 0
00D01303401 - PROTECTEUR DE CHAMBRE A AIR

10
P2R reference P2R reference 63880
Maker reference Maker reference 00D01303401

00D01303401 - PROTECTEUR DE CHAMBRE A AIR

More information

Quantity required : 0
WHEEL TENSIONER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -00H01305171

11
P2R reference P2R reference 64486
Maker reference Maker reference 00H01305171

WHEEL TENSIONER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006/APRILIA 50 SX, RX 2006> -00H01305171

More information

Quantity required : 0
REAR WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX -00F01210312-

12
P2R reference P2R reference 63905
Maker reference Maker reference 00F01210312

REAR WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX -00F01210312-

More information

Quantity required : 0
NUT - INDESSERABLE M12X150 FOR REAR WHEEL/ENGINE SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00262120032-

13
P2R reference P2R reference 63768
Maker reference Maker reference 002621200325

NUT - INDESSERABLE M12X150 FOR REAR WHEEL/ENGINE SUPPORT AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00262120032-

More information

Quantity required : 0
REAR WHEEL HUB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010/APRILIA 50 SX, RX 2006>2010 -00H01307821-

14
P2R reference P2R reference 64499
Maker reference Maker reference 00H01307821

REAR WHEEL HUB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2010/APRILIA 50 SX, RX 2006>2010 -00H01307821-

More information

Quantity required : 0
00H01317031 - COURONNE ARRIERE Z-53

15
P2R reference P2R reference 64518
Maker reference Maker reference 00H01317031

00H01317031 - COURONNE ARRIERE Z-53

More information

Quantity required : 0
REAR BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> 00H01305531-

16
P2R reference P2R reference 64487
Maker reference Maker reference 00H01305531

REAR BRAKE DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> 00H01305531-

More information

Quantity required : 0
00H01306351 - JANTE ARRIERE NUE.

17
P2R reference P2R reference 64491
Maker reference Maker reference 00H01306351

00H01306351 - JANTE ARRIERE NUE.

More information

Quantity required : 0
SCREW - FOR REAR DISC BRAKE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02401282-

18
P2R reference P2R reference 64696
Maker reference Maker reference 00H02401282

SCREW - FOR REAR DISC BRAKE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02401282-

More information

Quantity required : 0
REAR WHEEL SPOKE "INTERNAL" "PIAGGIO GENUINE PART" GILERA 50 SMT 2006> -00H01301731-

19
P2R reference P2R reference 64466
Maker reference Maker reference 00H01301731

REAR WHEEL SPOKE "INTERNAL" "PIAGGIO GENUINE PART" GILERA 50 SMT 2006> -00H01301731-

More information

Quantity required : 0
SPOKE (FRONT WHEEL) FOR GILERA 50 SMT 2006/APRILIA 50 SX 2010> - PIAGGIO GENUINE PART -00H01303691-

20
P2R reference P2R reference 64480
Maker reference Maker reference 00H01303691

SPOKE (FRONT WHEEL) FOR GILERA 50 SMT 2006/APRILIA 50 SX 2010> - PIAGGIO GENUINE PART -00H01303691-

More information

Quantity required : 0
NUT - FOR SPOKE "PIAGGIO GENUINE PART" GILERA SMT, RCR/APRILIA 50 SX, RX -00002212070-

21
P2R reference P2R reference 63627
Maker reference Maker reference 000022120705

NUT - FOR SPOKE "PIAGGIO GENUINE PART" GILERA SMT, RCR/APRILIA 50 SX, RX -00002212070-

More information

Quantity required : 0
INNER TUBE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>2010/APRILIA 50 SX WITH SPOKED WHEELS -00H01309361-

22
P2R reference P2R reference 64508
Maker reference Maker reference 00H01309361

INNER TUBE "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>2010/APRILIA 50 SX WITH SPOKED WHEELS -00H01309361-

More information

Quantity required : 0
00H01311321 - PNEU ARR. VEE RUBBER 130/70-17 V134 62S

23
P2R reference P2R reference 64512
Maker reference Maker reference 00H01311321

00H01311321 - PNEU ARR. VEE RUBBER 130/70-17 V134 62S

More information

Quantity required : 0
00H01501212 - ATTACHE RAPIDE

24
P2R reference P2R reference 64533
Maker reference Maker reference 00H01501212

00H01501212 - ATTACHE RAPIDE

More information

Quantity required : 0
