Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING LTD EDITION 2006 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

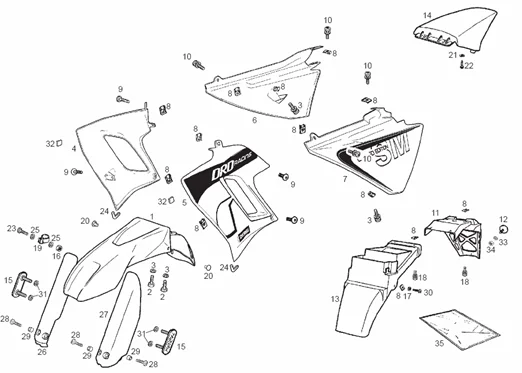

Tables : 5 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1035/SENDA_SM_DRD_RACING_LTD_EDITION_2006_E2_5.png)
1 |
00H007220215 - GARDE-BOUE AVANT RGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
2 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
3 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/9/5/5/img/187955.JPG)
4 |
20H04414771 - COUVERCLE AVANT More informationQuantity required : 1 |
||||||
|
5 |
20H04414781 - COUVERCLE AVANT More informationQuantity required : 1 |
||||||
|
6 |
86328000WN05 - COUVERTURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/9/5/8/img/187958.JPG)
7 |
20H00509081 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
9 |
863193 - TOR.FIJ.TAPA DT.6X15 AL.ORO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/3/img/63923.jpg)
10 |
SCREW - FOR DASHBOARD FASTENING 6X16 "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00F05900041- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/0/8/img/64308.jpg)
11 |
MUDGUARD/LICENSE PLATE HOLDER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H00718341- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
12 |
REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -AP8224164- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/9/3/img/64293.jpg)
13 |
REAR MUDGUARD - INNER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H00712341- More informationQuantity required : 1 |
||||||
|
14 |
86327600WN05 - COUVERTURE More informationQuantity required : 1 |
||||||
|
15 |
00G04400751 - CATADIOPTRIQUES LATERAL AMBRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
17 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
|
18 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/4/img/70054.jpg)
19 |
FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454- More informationQuantity required : 1 |
||||||
|
20 |
00G01800751 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
21 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/1/img/63681.jpg)
22 |
SCREW - (5,1X14) FOR FAIRINGS ASSEMBLY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00011051401- More informationQuantity required : 1 |
||||||
|
23 |
00008051600 - BOULON BOMBEE ALLEN 5M80X16 More informationQuantity required : 1 |
||||||
|
24 |
00H00502901 - PROTECTEUR More informationQuantity required : 1 |
||||||
|
25 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/7/img/151757.JPG)
26 |
00H06305991 - PROTECTOR More informationQuantity required : 1 |
||||||
|
27 |
00H06303991 - PROTECTOR More informationQuantity required : 1 |
||||||
|
28 |
00H01502701 - VIS More informationQuantity required : 1 |
||||||
|
29 |
00G06300251 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
30 |
00012061200 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
31 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.JPG)
32 |
890512 - EPONGE ADHESIVE 15X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.JPG)
34 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 1 |
||||||
|
35 |
86319400WN0 - R-CTO.KIT CALCAS SM DRD RACING LTD 2006 More informationQuantity required : 1 |
