Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM DRD RACING 2005-2008 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

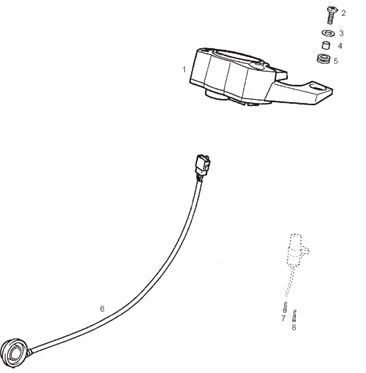

Tables : 11 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1032/SENDA_SM_DRD_RACING_2005-2008_E2_2ver_11.png)
1 |
00H01633521 - BOITIER TABLEAU BORD (KM/H) More informationQuantity required : 1 |
||||||
|
1 |
866129 - COMPTEUR SM DRD 50CC AL.FR More informationQuantity required : 1 |
||||||
|
1 |
866131 - COMPTEUR SM DRD 50CC INGLAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/3/img/63703.jpg)
2 |
SCREW - DASHBOARD MOUNTING "PIAGGIO GENUINE PART" GILERA SMT <2017 (M5X20) -00012152000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
3 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/7/2/img/64572.jpg)
4 |
00H01600911 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
5 |
RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/7/img/70887.jpg)
6 |
SPEED SENSOR "PIAGGIO GENUINE PART" GILERA 125 SC/APRILIA 50 RX, SX, RS4 -898626- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
AP8150169 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
8 |
00H06300791 - VIS More informationQuantity required : 1 |
