Vehicle Exploded View - DERBI SENDA SM 50 SENDA SM 2000-2001 EXPORT MARKET
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

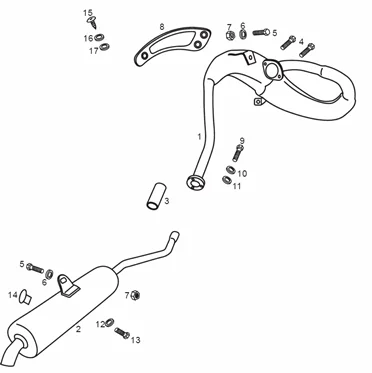

Moteur : 20 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1026/SENDA_SM_2000-2001_EXPORT_MARKET_20.png)
1 |
00H03424081 - ENSEMBLE TUBE DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
00H03426081 - SCTO.TUBO ESC-SIL.S-R/2000 WVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/5/img/69845.jpg)
2 |
86126R - SILENCIEUX DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
00H03422411 - SCTO.SORDINA SDA-R 01 More informationQuantity required : 1 |
||||||
|
2 |
86126R - SILENCIEUX DIECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
00H03417411 - SILENCIEUX D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/6/0/1/img/187601.JPG)
3 |
00H03401321 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
4 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
|
5 |
00012081621 - VISA TETE HEXAG.8M125X16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
6 |
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
6 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
7 |
NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000- More informationQuantity required : 1 |
||||||
|
8 |
00H01800401 - PROTECT.SIL. More informationQuantity required : 1 |
||||||
|
9 |
00004061600 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
10 |
00442060002 - RONDELLE A RESSORT D6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/9/2/img/64792.jpg)
11 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H03404321- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
12 |
847239 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
00G01500951 - APPUI BEQUILLE LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/0/img/63580.jpg)
15 |
00000012415 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/2/img/63922.jpg)
16 |
00F04201361 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
17 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
