Vehicle Exploded View - DERBI SENDA R 50 SENDA R 2002 RACER
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

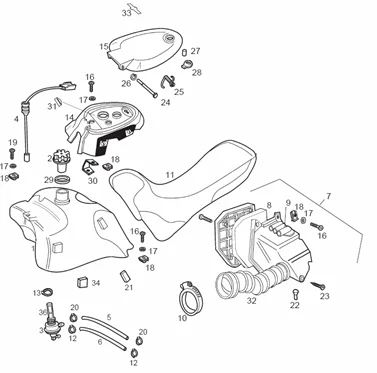

Tables : 5 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1085/SENDA_R_2002_RACER_5.png)
1 |
00H00400011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
00H00401011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
00F00400131 - ENS.BOUCHON RESERV.ESSENCE V.B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/0/img/63930.jpg)
3 |
FUEL TAP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006>, RS4 2011> -00G00400181- More informationQuantity required : 1 |
||||||
|
4 |
00H04301181 - ENSEMBLE FLOTTEUR ESSENCE More informationQuantity required : 1 |
||||||
|
5 |
00H00402321 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
00H06200061 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
00H01800541 - ENSEMBLE BOITE FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/8/img/157088.jpg)
8 |
AIR FILTER"PIAGGIO GENUINE PART" GILERA 50 SMT 2003>, RCR 2003>/APRILIA 50 RX 2006>, SX 2006> -B0432990P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/0/img/63890.JPG)
9 |
00D03210491 - TUBE DIASPIRATION More informationQuantity required : 1 |
||||||
|
10 |
00H03200271 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/0/img/64080.jpg)
10 |
CLAMP FOR AIRBOX JUNCTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G03204272- More informationQuantity required : 1 |
||||||
|
11 |
00H00614012 - CTO.SILLIN SD-R-RACER NEGRA More informationQuantity required : 1 |
||||||
|
11 |
00H00614011 - CTO.SILLIN SD-R-RACER AZUL More informationQuantity required : 1 |
||||||
|
11 |
00H00605017 - SELLE More informationQuantity required : 1 |
||||||
|
11 |
00H00605016 - SELLE More informationQuantity required : 1 |
||||||
|
11 |
00H00605015 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
12 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/2/img/63932.jpg)
13 |
00G00400501 - COLLIER More informationQuantity required : 1 |
||||||
|
14 |
00H01515222 - TAPA DEPOSITOS AZ.SD-R-RACER More informationQuantity required : 1 |
||||||
|
14 |
00H01505226 - DESSUS DE RESERVOIR More informationQuantity required : 1 |
||||||
|
14 |
00H01505223 - DESSUS DE RESERVOIR More informationQuantity required : 1 |
||||||
|
14 |
00H00403711 - CARCASSE RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
15 |
00H00402682 - COUVERCLE DE RESERVOIR More informationQuantity required : 1 |
||||||
|
15 |
00H00402686 - COUVERCLE DE RESERVOIR More informationQuantity required : 1 |
||||||
|
15 |
00H00413681 - SCTO.TAPA SUP.DEP.AZ.SD-R-RAC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
16 |
SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
17 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
19 |
00012062500 - VIS CRUXIFORME 6M100X25 More informationQuantity required : 1 |
||||||
|
20 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.JPG)
21 |
890512 - EPONGE ADHESIVE 15X8 More informationQuantity required : 1 |
||||||
|
24 |
00H06301751 - AXE More informationQuantity required : 1 |
||||||
|
25 |
00H06301761 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
26 |
CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400- More informationQuantity required : 1 |
||||||
|
28 |
00G00601141 - LEVIER FERMETURE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/7/img/63897.jpg)
29 |
FUEL CAP WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00F00400771- More informationQuantity required : 1 |
||||||
|
30 |
00H01502051 - LANGUETTE FIXATION More informationQuantity required : 1 |
||||||
|
31 |
00G04400481 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H03203261 - TUYAU D,ADMISIOM More informationQuantity required : 1 |
||||||
|
32 |
00H03202261 - TUYAU D'ADMISSION More informationQuantity required : 1 |
||||||
|
33 |
00G01505731 - ADHESIF More informationQuantity required : 1 |
||||||
|
34 |
AP8117041 - EPONGE ADHESIVE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/8/7/img/63987.jpg)
35 |
00G01500701 - VIS More informationQuantity required : 1 |
||||||
|
36 |
00H00400371 - TUYAU RESERVOIR ESSENCE A ROBI More informationQuantity required : 1 |
