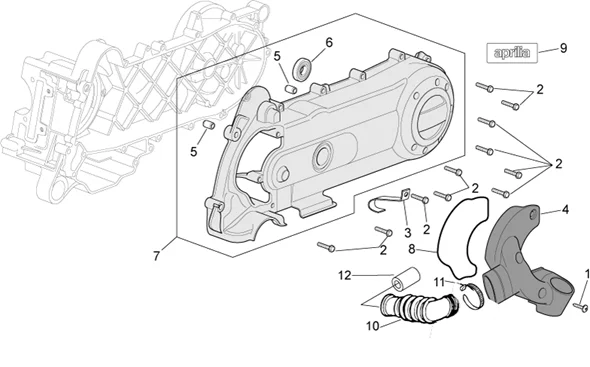

Moteur : 29.40 COUVERCLE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/587/Scarabeo_50_4T_4V_Net_2010_29.40.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
1 |
SCREW - FOR VARIATOR COOLING COVER "PIAGGIO GENUINE PART" GILERA RUNNER / PIAGGIO NRG, TYPHOON, ZIP/ VESPA ET4, LX , S ,PRIMAVERA, SPRINT -435295- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
2 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792- More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/8/img/67078.jpg)
3 |
564761 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/4/img/70994.jpg)
4 |
COOLING COVER FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, VESPA-S -969804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
5 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/4/img/68524.jpg)
6 |
BEARING FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -82521R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/1/9/img/70419.jpg)
7 |
TRANSMISSION COVER "PIAGGIO GENUINE PART" 50 TYPHOON 4 STROKE 2010>/APRILIA 50 SR MOTARD 4 STROKE, SCARABEO 4 STROKE, SPORT-CITY 4 STROKE -8722275- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/0/img/66470.jpg)
8 |
435251 - JOINT More informationQuantity required : 1 |
||||||
9 |
AP8267447 - PLAQUETTE 'APRILIA' More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/9/9/img/70999.JPG)
10 |
969899 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
11 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/0/1/img/71001.JPG)
12 |
969921 - ELEMENT FILTRE AIR More informationQuantity required : 1 |
