Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V E2 2010-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

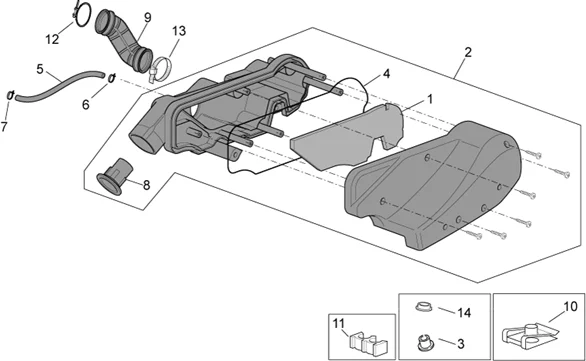

Chassis : 28.16 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/589/Scarabeo_50_4T_4V_E2_2010-2012_28.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/3/img/157083.jpg)
1 |
AIR FILTER (PREMIUM) "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO 2002> 4STROKE -AP82022490P- More informationQuantity required : 1 |
||||||
|
1 |
AIR FILTER (PREMIUM) "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO 2002> 4STROKE -AP82022490P- More informationQuantity required : 1 |
||||||
2 |
2B001120 - BO?TIER DU FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
3 |
AP8121795 - DOUILLE EN T More informationQuantity required : 1 |
||||||
|
4 |
AP8220616 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
5 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 1 |
||||||
|
6 |
AP8102378 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
7 |
AP8101595 - COLLIER More informationQuantity required : 1 |
||||||
|
8 |
894606 - MANCHON More informationQuantity required : 1 |
||||||
|
9 |
894112 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
11 |
AP8201808 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
12 |
AP8201799 - COLLIER DURITE More informationQuantity required : 1 |
||||||
|
13 |
AP8104502 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
14 |
AP8121032 - DOUILLE More informationQuantity required : 1 |
