Vehicle Exploded View - APRILIA SCARABEO 4T 50 2V E2 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

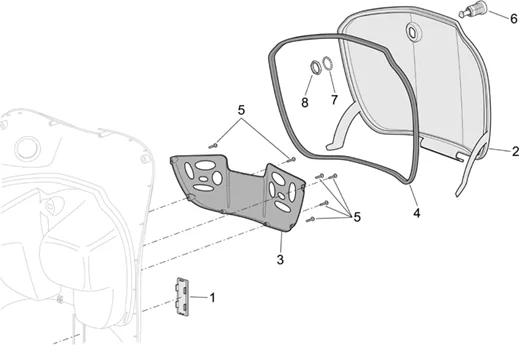

Chassis : 28.08 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/591/Scarabeo_50_4T_2V_E2_2006-2009_28.08.PNG)
1 |
AP8179856 - COPERCHIO DGM GRIGIO More informationQuantity required : 1 |
||||||
|
2 |
AP8269138 - OUV.P-OBJ.P.VERT More informationQuantity required : 1 |
||||||
|
2 |
AP8269122 - ABATTANT PORTE-OBJETS BL. More informationQuantity required : 1 |
||||||
|
2 |
63598200XER - ABATTANT More informationQuantity required : 1 |
||||||
|
2 |
AP8268796 - VOLET VIDE-POCHE More informationQuantity required : 1 |
||||||
|
2 |
AP8268783 - VOLET VIDE-POCHE BLANC More informationQuantity required : 1 |
||||||
|
2 |
AP8268770 - VOLET VIDE-POCHE More informationQuantity required : 1 |
||||||
|
2 |
AP8268715 - PORTE More informationQuantity required : 1 |
||||||
|
2 |
AP8268695 - PORTE More informationQuantity required : 1 |
||||||
|
2 |
AP8179980 - PORTE ROUGE More informationQuantity required : 1 |
||||||
|
2 |
AP8184095 - DOOR GREEN More informationQuantity required : 1 |
||||||
|
2 |
AP8268654 - DOORS BLUE More informationQuantity required : 1 |
||||||
|
2 |
AP8268657 - DOORS BLACK More informationQuantity required : 1 |
||||||
|
2 |
AP8268660 - DOORS GREY More informationQuantity required : 1 |
||||||
|
2 |
AP8268675 - PORTE More informationQuantity required : 1 |
||||||
|
3 |
AP8148736 - GRILLE INTERNE PORTE-OBJETS More informationQuantity required : 1 |
||||||
|
4 |
AP8220407 - JOINT COFFRE NOIR 7X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/1/img/71971.jpg)
5 |
SCREW - BODY PARTS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA/MOTO GUZZI M3X12 -AP8152334- More informationQuantity required : 6 |
||||||
|
6 |
AP8104600 - SERRURE PORTE-OBJETS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.JPG)
7 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
8 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
