Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 2000-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

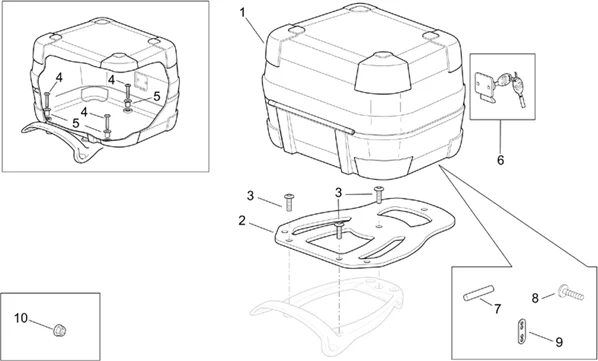

Chassis : 28.17 COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/600/Scarabeo_50_2T_Mot_Minarelli_2000-2006_28.17.PNG)
1 |
Coffre, bleu; |
||||||
|
1 |
AP8792253 - COFFRE, BEIGE; More informationQuantity required : 1 |
||||||
|
1 |
AP8792250 - COFFRE, NOIRE; More informationQuantity required : 1 |
||||||
|
1 |
Coffre, silver; |
||||||
|
2 |
AP8702126 - PLAQUE ACCROCHAGE COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
3 |
AP8152108 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
4 |
AP8152117 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
5 |
AP8121725 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
||||||
|
6 |
Serrure coffre; |
||||||
|
7 |
Goupille |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 8 |
||||||
|
9 |
Plaquette |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
10 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 3 |
