Vehicle Exploded View - APRILIA SCARABEO 2T 50 Mot Minarelli 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

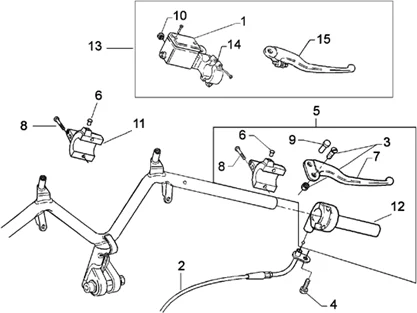

Chassis : 28.23 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/603/Scarabeo_50_2T_Mot_Minarelli_1993-1997_28.23.PNG)
1 |
AP8213475 - COUVERCLE POMPE; More informationQuantity required : 0 |
||||||
|
2 |
AP8214125 - CABLE GAZ; More informationQuantity required : 0 |
||||||
|
3 |
Pivot levier frein; |
||||||
|
4 |
Vis; |
||||||
|
5 |
AP8218316 - COM. GAZ SANS POIGNEE + LEVIER; More informationQuantity required : 0 |
||||||
|
5 |
Com. gaz sans poignée + levier; |
||||||
|
6 |
Bouchon; |
||||||
|
7 |
Levier frein nu; |
||||||
|
7 |
Levier frein AV bril.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
8 |
B016808 - VIS M5X20 More informationQuantity required : 0 |
||||||
|
8 |
B016808 - VIS M5X20 More informationQuantity required : 0 |
||||||
|
9 |
Encliquetage; |
||||||
|
10 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 0 |
||||||
|
11 |
Couvercle déviateur feux D; |
||||||
|
12 |
AP8218214 - TUYAU GAZ SANS MANETTE; More informationQuantity required : 0 |
||||||
|
13 |
AP8213207 - MA?T. CYL. FREIN AV More informationQuantity required : 0 |
||||||
|
13 |
AP8213252 - MA?T. CYL. FREIN AV More informationQuantity required : 0 |
||||||
|
14 |
AP8218155 - CAVALIER LEVIER FREIN; More informationQuantity required : 0 |
||||||
|
15 |
AP8218156 - LEVIER FREIN AV+REGL.; More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/7/img/56647.jpg)
15 |
FRONT BRAKE LEVER- GRIMECA "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO, RALLY, SR, AMICO, 125 LEONARDO -AP8218273- More informationQuantity required : 0 |
