Vehicle Exploded View - APRILIA SCARABEO 2T 50 E2 Mot Piaggio 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

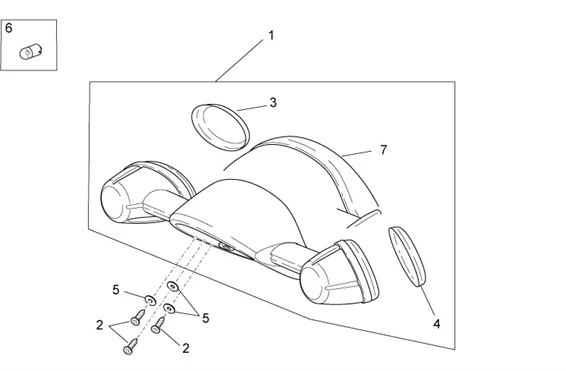

Chassis : 28.28 INDICATEURS DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/596/Scarabeo_50_2T_E2_Mot_Piaggio_2010-2011_28.28.PNG)
1 |
854984 - PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 3 |
||||||
|
3 |
852439 - TRASPARENTE PER FRECCIA POST.DX More informationQuantity required : 1 |
||||||
|
4 |
852440 - TRASPARENTE PER FRECCIA POST.SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
5 |
AP8150501 - ROSETTA M4 More informationQuantity required : 3 |
||||||
|
6 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 2 |
||||||
|
7 |
854984 - PHARE More informationQuantity required : 1 |
