Vehicle Exploded View - APRILIA SCARABEO 125 Mot Rotax 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

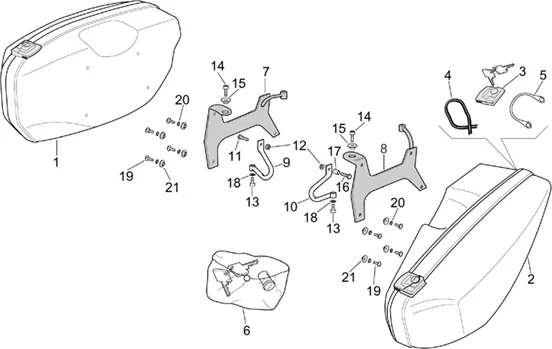

Chassis : 28.24 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/614/Scarabeo_125_Mot_Rotax_99-04_28.24.PNG)
1 |
VALIGIA LATERALE DX VERD |
||||||
|
1 |
VALIGIA LATERALE DX GRI |
||||||
|
1 |
VALISE LAT DROITE BLEU |
||||||
|
2 |
VALIGIA LATERALE SX GRIG |
||||||
|
2 |
VALIGIA LATERALE SX BLU |
||||||
|
2 |
VALIGIA LATERALE SX VERD |
||||||
|
3 |
AP8792117 - SERRURE SANS ROTOR+CL?; More informationQuantity required : 4 |
||||||
|
4 |
Joint |
||||||
|
5 |
AP8201855 - CABLE COFFRE AR; More informationQuantity required : 4 |
||||||
|
6 |
Kit rotor avec clé; |
||||||
|
7 |
AP8702108 - SUPPORT DROITE More informationQuantity required : 1 |
||||||
|
8 |
AP8702105 - SUPPORT GAUCHE More informationQuantity required : 1 |
||||||
|
9 |
AP8702109 - FIXATION DROITE More informationQuantity required : 1 |
||||||
|
10 |
AP8702107 - FIXATION GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
12 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
13 |
AP8150169 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
14 |
AP8150157 - VIS More informationQuantity required : 2 |
||||||
|
15 |
AP8702106 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
16 |
AP8152290 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
17 |
AP8700172 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
18 |
AP8152154 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
20 |
658830 - RONDELLE More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
21 |
AP8120508 - "DOUILLE EN ""T""" More informationQuantity required : 8 |
