Vehicle Exploded View - APRILIA SCARABEO LIGHT 125 Scarabeo 125 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

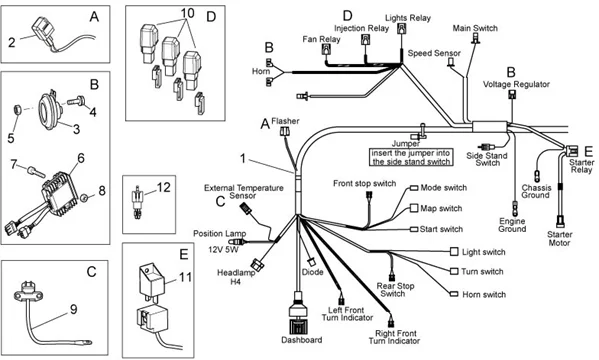

Chassis : 28.38 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/608/Scarabeo_125_IE_Light_2009-2010_28.38.PNG)
1 |
JC36600X94000 - CABLAGE PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
AP8127847 - INTERMITTENZA More informationQuantity required : 1 |
||||||
|
3 |
JC38500X94000 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285 More informationQuantity required : 1 |
||||||
|
5 |
JCB51100800JN00 - ECROU M8 More informationQuantity required : 1 |
||||||
|
6 |
JC32800X94000 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
|
7 |
JCA20106025JN00 - VIS M6X25 More informationQuantity required : 2 |
||||||
|
8 |
JCB51100600JN00 - ECROU M6 More informationQuantity required : 2 |
||||||
|
9 |
JC39110X92000 - DETEC. TEMPER. AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/1/2/5/img/63125.jpg)
10 |
RELAY "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>2010 -JC38630X92000 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
11 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R More informationQuantity required : 1 |
||||||
|
12 |
Module de résistance-diode |
