Vehicle Exploded View - APRILIA SCARABEO 125 E2 Mot Piaggio 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

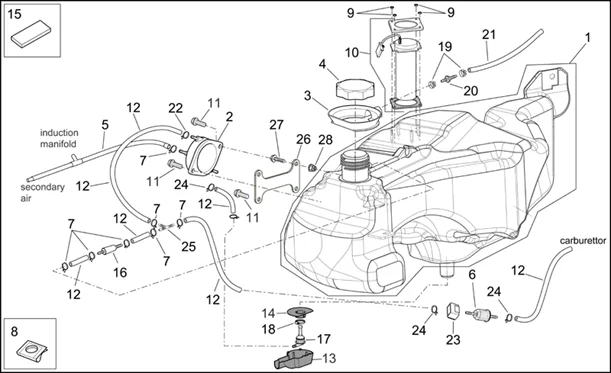

Chassis : 28.30 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/610/Scarabeo_125_E2_Mot_Piaggio_2004-2006_28.30.PNG)
1 |
AP8178359 - SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
2 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/5/4/0/img/53540.jpg)
2 |
FUEL PUMP "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO -AP8176152 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/3/img/71753.jpg)
3 |
AP8144187 - CAOUTCHOUC COLLECTE ESSENCE; More informationQuantity required : 1 |
||||||
|
4 |
AP8201757 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
5 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544 More informationQuantity required : 1 |
||||||
|
5 |
AP8134815 - TUBO DEPRESSIONE PREFORMATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/3/img/71223.jpg)
6 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 SPORT-CITY, MOJITO, SCARABEO, ATLANTIC -AP8104406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
7 |
AP8101595 - COLLIER More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
9 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/2/3/8/img/48238.jpg)
10 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO 2004>2006 -AP8127618 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
11 |
AP8152272 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
12 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544 More informationQuantity required : 1 |
||||||
|
13 |
AP8258692 - BAC ESSENCE; More informationQuantity required : 1 |
||||||
|
14 |
AP8258693 - SUPPORT; More informationQuantity required : 1 |
||||||
|
15 |
AP8117041 - EPONGE ADHESIVE; More informationQuantity required : 1 |
||||||
|
16 |
AP8104251 - SOUPAPE DE RETENUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/1/6/img/71216.jpg)
17 |
FUEL TANK UNION "PIAGGIO GENUINE PART" APRILIA 125 SPORT-CITY, MOJITO, 50 SCARABEO, SX, RX, MOJITO -AP8104071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
18 |
AP8101573 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
AP8101770 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
20 |
2 WAY UNION (FOR FUEL) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8101944 More informationQuantity required : 1 |
||||||
|
21 |
AP8220402 - TUYAU More informationQuantity required : 1 |
||||||
|
22 |
AP8102378 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
23 |
AP8220546 - CAOUTCHOUC SUPPORT RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/0/img/45230.jpg)
24 |
AP8102811 - COLLIER More informationQuantity required : 4 |
||||||
|
25 |
AP8144303 - "RACCORD EN ""T""" More informationQuantity required : 1 |
||||||
|
26 |
AP8146972 - SUPPORTO POMPA BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
27 |
AP8152273 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
28 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
