Vehicle Exploded View - GILERA SC 125 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

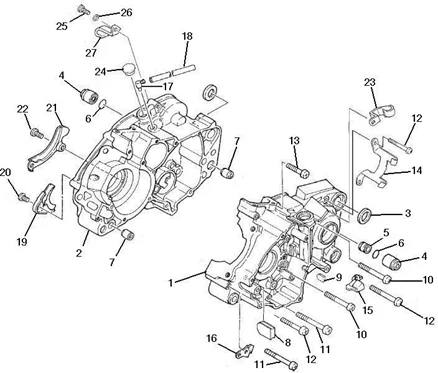

Motor : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/167/SC_125_2006_01.05.PNG)
1 |
00M12502104 - CARTERS MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
00M12502069 - CARTERS MOTEUR More informationQuantity required : 1 |
||||||
|
3 |
00M12502194 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
00M12502050 - AMORTISSEUR More informationQuantity required : 1 |
||||||
|
5 |
00M12502071 - PIED DE CENTRAGE More informationQuantity required : 1 |
||||||
|
6 |
00M12502259 - ANNEAU More informationQuantity required : 1 |
||||||
|
7 |
AP8206169 - GOUPILLE CARTER More informationQuantity required : 1 |
||||||
|
9 |
00M12502106 - BOUCHON More informationQuantity required : 1 |
||||||
|
10 |
00M12502306 - VIS More informationQuantity required : 1 |
||||||
|
11 |
00M12502307 - VIS More informationQuantity required : 1 |
||||||
|
12 |
00M12502305 - VIS More informationQuantity required : 1 |
||||||
|
13 |
00M12502304 - VIS More informationQuantity required : 1 |
||||||
|
14 |
00M12502224 - BRIDE More informationQuantity required : 1 |
||||||
|
15 |
00M12502225 - BRIDE More informationQuantity required : 1 |
||||||
|
16 |
00M12502070 - SUPPORT More informationQuantity required : 1 |
||||||
|
17 |
00M12502004 - RENIFLARD More informationQuantity required : 1 |
||||||
|
18 |
00M12502222 - TUYAU RENIFLARD More informationQuantity required : 1 |
||||||
|
20 |
00M12502308 - VIS More informationQuantity required : 1 |
||||||
|
21 |
00M12502041 - COUVERCLE More informationQuantity required : 1 |
||||||
|
23 |
00M12502226 - BRIDE More informationQuantity required : 1 |
||||||
|
24 |
00M12502208 - BOUCHON More informationQuantity required : 1 |
||||||
|
25 |
00M12502292 - PIVOT More informationQuantity required : 1 |
||||||
|
26 |
00M12502249 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
00M12502227 - BRIDE More informationQuantity required : 1 |
