Vehicle Exploded View - APRILIA RXV 450 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

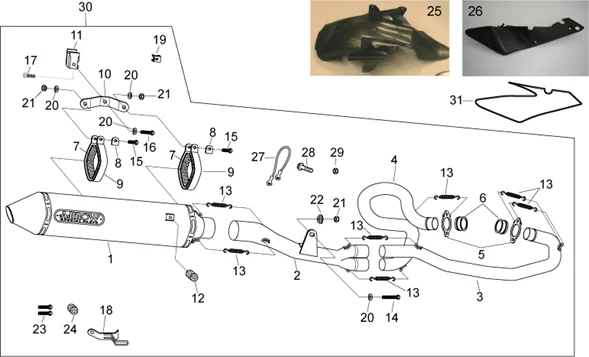

Chassis : 28.61 GROUPE ECHAPPEMENT II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/634/RXV_450_2008_28.61.PNG)
1 |
858512 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
2 |
858513 - RACCORD More informationQuantity required : 1 |
||||||
|
3 |
8585144 - COLLECTEUR AV More informationQuantity required : 1 |
||||||
|
4 |
858515 - TUYAU D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
5 |
858516 - BRIDE More informationQuantity required : 2 |
||||||
|
6 |
858517 - MOYEU More informationQuantity required : 2 |
||||||
|
7 |
858519 - JOINT More informationQuantity required : 2 |
||||||
|
8 |
858520 - PLAQUE More informationQuantity required : 2 |
||||||
|
9 |
858521 - COLLIER More informationQuantity required : 2 |
||||||
|
10 |
858522 - SUPPORT More informationQuantity required : 1 |
||||||
|
11 |
858523 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
AP8144277 - TAMPON FIN DE COURSE BEQUILLE More informationQuantity required : 1 |
||||||
|
13 |
858524 - RESSORT More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
14 |
AP8152290 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
15 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
16 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
17 |
AP8150170 - VIS More informationQuantity required : 1 |
||||||
|
18 |
858525 - PLAQUE More informationQuantity required : 1 |
||||||
|
19 |
ECROU |
||||||
|
20 |
AP8150009 - RONDELLE FER PLATE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
21 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
22 |
AP8120508 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
23 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
24 |
AP8144087 - CAOUTCHOUC AVANT LATERAL; More informationQuantity required : 1 |
||||||
|
25 |
851449 - QUEUE, More informationQuantity required : 1 |
||||||
|
26 |
851448 - RIGHT FLANKET FOR EXHAUST More informationQuantity required : 1 |
||||||
|
27 |
851495 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
28 |
AP8152289 - VIS BRIDE More informationQuantity required : 4 |
||||||
|
29 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300 More informationQuantity required : 3 |
||||||
|
30 |
858409 - TUYAU D'ECHAPPEMENT CPL More informationQuantity required : 1 |
||||||
|
31 |
858503 - DECALCO More informationQuantity required : 1 |
