Vehicle Exploded View - APRILIA RX 50 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

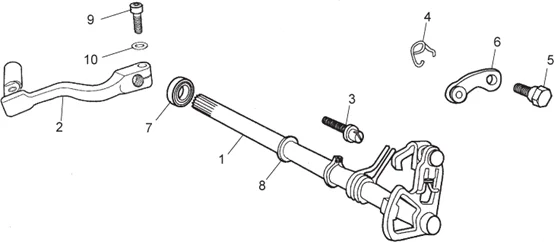

Moteur : 29.17 SELECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/687/RX_50_2014_29.17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/5/4/5/img/176545.JPG)
1 |
1A0043546 - COMPLETE DRIVE GEAR BOX More informationQuantity required : 1 |
||||||
|
1 |
1A0043546 - COMPLETE DRIVE GEAR BOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/2/7/img/64727.jpg)
2 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H027034215- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/3/img/94803.jpg)
3 |
GEAR SELECTOR PIN "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -B018064- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
4 |
GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" GILERA/APRILIA -1A010665- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
6 |
GEAR ARREST LEVER (INTERNAL) "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -1A010685- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
7 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
8 |
GEARBOX SELECTOR AXLE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847228- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/8/img/71828.jpg)
9 |
AP8150165 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
10 |
658830 - RONDELLE More informationQuantity required : 1 |
