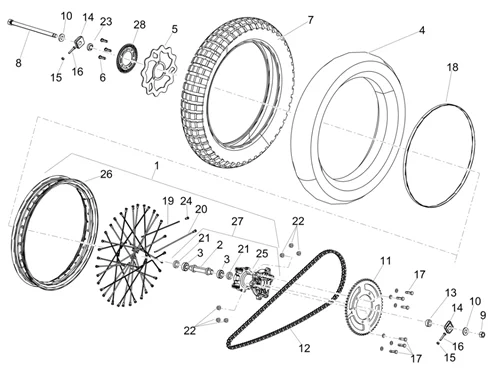

Vehicle Exploded View - APRILIA RX 125 E4 2018 (EMEA)

Châssis : 05.110 ROUE AR.

Roue AR.

Search

1

	P2R reference	154500
	Maker reference	2R000469

2R000469 - ROUE AR.

More information

Quantity required : 1

2

	P2R reference	154501
	Maker reference	2R000449

2R000449 - ENTRETOISE

More information

Quantity required : 1

3

	P2R reference	154483
	Maker reference	2R000455

2R000455 - ROULEMENT

More information

Quantity required : 2

4

	P2R reference	154502
	Maker reference	2R000494

2R000494 - CHAMBRE A AIR 3.5/4.0- 18

More information

Quantity required : 1

5

	P2R reference	154503
	Maker reference	00H01311531

00H01311531 - DISQUE DE FREIN ARRIERE

More information

Quantity required : 1

6

	P2R reference	154504
	Maker reference	2B004309

2B004309 - VIS

More information

Quantity required : 3

7

	P2R reference	154505
	Maker reference	2R000493

2R000493 - PNEU ARRIERE 120/80- 18

More information

Quantity required : 1

8

	P2R reference	154506
	Maker reference	866000

866000 - CTO.EJE RUEDA TRAS.DRD125 09

More information

Quantity required : 1

9

	P2R reference	64214
	Maker reference	00H00300672

NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672-

More information

Quantity required : 1

10

	P2R reference	154489
	Maker reference	2R000423

2R000423 - RONDELLE #15×#28×2.5

More information

Quantity required : 1

11

	P2R reference	154507
	Maker reference	2R000478

2R000478 - COURONNE G. 58

More information

Quantity required : 1

12

	P2R reference	154508
	Maker reference	2B005405

2B005405 - CHAINE

More information

Quantity required : 1

13

	P2R reference	154509
	Maker reference	2B004205

2B004205 - DOUILLE

More information

Quantity required : 1

14

	P2R reference	154510
	Maker reference	865736

865736 - TENSOR RUEDA TRAS.DRD125 09

More information

Quantity required : 2

15

	P2R reference	154511
	Maker reference	2R000437

2R000437 - ECROU

More information

Quantity required : 2

16

	P2R reference	154512
	Maker reference	2R000522

2R000522 - VIS M6X35

More information

Quantity required : 2

17

	P2R reference	154513
	Maker reference	2R000435

2R000435 - VIS M8 × 30

More information

Quantity required : 6

18

	P2R reference	154514
	Maker reference	2R000468

2R000468 - FLAP

More information

Quantity required : 1

19

	P2R reference	154515
	Maker reference	2R000470

2R000470 - RAYON 3.5×210

More information

Quantity required : 18

20

	P2R reference	154516
	Maker reference	2R000471

2R000471 - RAYON 3.5×218

More information

Quantity required : 18

21

	P2R reference	154497
	Maker reference	2R000462

2R000462 - PARE-HUILE D25X35X5

More information

Quantity required : 2

22

	P2R reference	154409
	Maker reference	2R000441

2R000441 - ECROU

More information

Quantity required : 6

23

	P2R reference	154517
	Maker reference	2R000457

2R000457 - RONDELLE #25×#15.1×6

More information

Quantity required : 1

24

	P2R reference	154518
	Maker reference	2R000452

2R000452 - NIPPLE 3.5×20

More information

Quantity required : 36

25

	P2R reference	154519
	Maker reference	2R000451

2R000451 - MOYEU

More information

Quantity required : 1

26

	P2R reference	154520
	Maker reference	2R000472

2R000472 - JANTE ROUE 18X2.15

More information

Quantity required : 1

27

	P2R reference	154521
	Maker reference	2R000429

2R000429 - MOYEU ROUE ARR.

More information

Quantity required : 1

28

	P2R reference	154522
	Maker reference	2B004207

2B004207 - ROUE PHONIQUE

More information

Quantity required : 1
