Vehicle Exploded View - APRILIA RX 125 1995-1998 Mot 122 cc
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

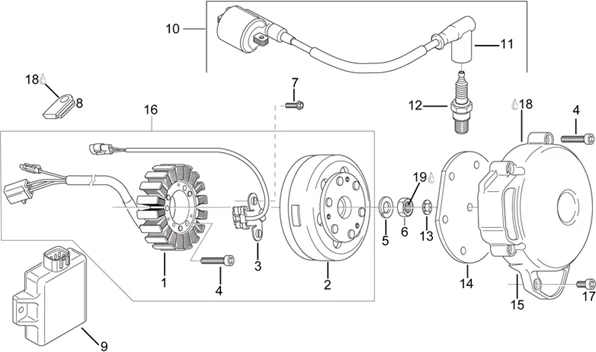

Moteur : 29.22 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/689/RX_125_1995-1998_Mot_122_cc_29.22.PNG)
1 |
AP0295670 - STATOR COMPLET More informationQuantity required : 1 |
||||||
|
2 |
AP0295675 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
3 |
AP0265157 - PICK-UP EXT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
4 |
AP0840880 - VIS More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/6/1/7/img/44617.jpg)
5 |
AP0945754 - RONDELLE FENDUE More informationQuantity required : 1 |
||||||
|
6 |
AP0242516 - ECROU More informationQuantity required : 1 |
||||||
|
7 |
AP0941925 - VIS TE SPECIALE More informationQuantity required : 2 |
||||||
|
8 |
AP0260840 - CAOUTCHOUC CACHE-FIL More informationQuantity required : 1 |
||||||
|
9 |
AP0265405 - BO?TIER ANALOGIQUE; More informationQuantity required : 1 |
||||||
|
10 |
AP0265415 - BOBINE HT; More informationQuantity required : 1 |
||||||
|
11 |
AP0866708 - PIPE BOUGIE NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/0/0/img/71100.jpg)
12 |
SPARK PLUG NGK BR10EG "PIAGGIO GENUINE PART" GILERA 50-125 RS, RX, SX -AP0297830- More informationQuantity required : 1 |
||||||
|
13 |
AP0245750 - BAGUE SEEGER More informationQuantity required : 2 |
||||||
|
14 |
AP0260250 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
16 |
AP0295360 - ALLUMAGE More informationQuantity required : 1 |
||||||
|
17 |
AP0241081 - VIS More informationQuantity required : 2 |
||||||
|
18 |
AP0297386 - SILASTIC 732 RTV More informationQuantity required : 1 |
||||||
|
19 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
