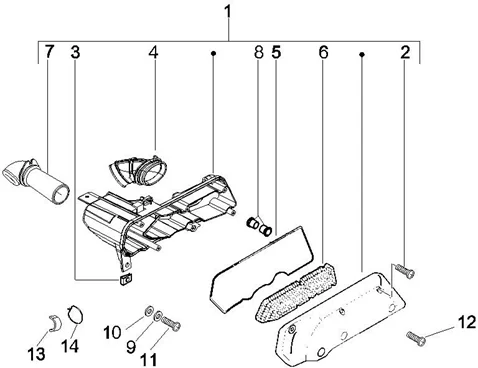

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/165/Runner_50_SP_01.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/9/img/168759.JPG)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -1A010666 - More informationQuantity required : 1 |
||||||
|
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR -1A010666 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/3/img/66743.jpg)
4 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 50 (COMMON TO ALL THE RANGE SCOOTER 50 CC 2 STROKE) -487592- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/6/img/66746.jpg)
5 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50 CC 2 STROKE 2004> -487718- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/7/5/img/157075.jpg)
6 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO 50 ZIP 2T 2000>, VESPA LX 2T 2005>, LYBERTY 2T 2005>, NRG 2005>/GILERA 50 DNA, RUNNER 2005>, STALKER 2001>/APRILIA 50 SR 2012> -1A0122830P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/7/img/68867.jpg)
7 |
829715 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
8 |
830056 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
9 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
10 |
012533 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/2/img/65392.jpg)
11 |
SCREW - FOR AIR BOX 6X20 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -015759- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/8/img/65448.jpg)
12 |
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.JPG)
13 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
14 |
257134 - COLLIER More informationQuantity required : 1 |
