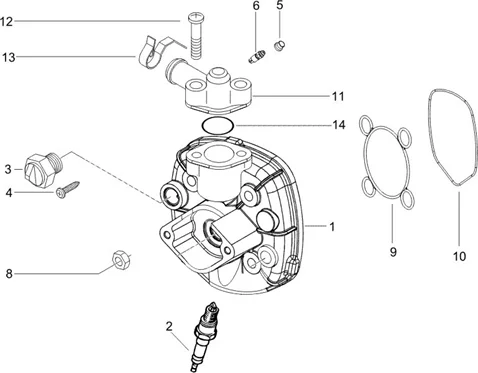

Vehicle Exploded View - GILERA RUNNER 50 Pure Jet Race 2005 GILERA

Moteur : 01.12 COUVERCLE CULASSE
Couvercle culasse
Search
CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -8302025-

1
P2R reference P2R reference 68900
Maker reference Maker reference 8302025

CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION/APRILIA 50 SR INJECTION -8302025-

More information

Quantity required : 1
438074 - BOUGIE CHAMPION RG6YCA

2
P2R reference P2R reference 66530
Maker reference Maker reference 438074

438074 - BOUGIE CHAMPION RG6YCA

More information

Quantity required : 1
THERMOSTAT "PIAGGIO GENUINE PART" 50 NRG, ZIP L.C. /GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR L.C. -483395-

3
P2R reference P2R reference 66631
Maker reference Maker reference 483395

THERMOSTAT "PIAGGIO GENUINE PART" 50 NRG, ZIP L.C. /GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR L.C. -483395-

More information

Quantity required : 1
256756 - BOULON

4
P2R reference P2R reference 66016
Maker reference Maker reference 256756

256756 - BOULON

More information

Quantity required : 2
063435 - CAPUCHON

5
P2R reference P2R reference 65657
Maker reference Maker reference 0634355

063435 - CAPUCHON

More information

Quantity required : 1
BRAKE DRAIN SCREW -430045-

6
P2R reference P2R reference 66370
Maker reference Maker reference 430045

BRAKE DRAIN SCREW -430045-

More information

Quantity required : 1
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

8
P2R reference P2R reference 66187
Maker reference Maker reference 288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

More information

Quantity required : 4
CYLINDER HEAD GASKET- INNER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC L.C. -288289-

9
P2R reference P2R reference 66189
Maker reference Maker reference 288289

CYLINDER HEAD GASKET- INNER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC L.C. -288289-

More information

Quantity required : 1
O'RING GASKET FOR CYLINDER HEAD (NEW MODEL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC LIQUIDE -482988-

10
P2R reference P2R reference 66628
Maker reference Maker reference 482988

O'RING GASKET FOR CYLINDER HEAD (NEW MODEL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC LIQUIDE -482988-

More information

Quantity required : 1
832262 - RACCORD

11
P2R reference P2R reference 68996
Maker reference Maker reference 832262

832262 - RACCORD

More information

Quantity required : 1
015597 - VIS S01559700

12
P2R reference P2R reference 65385
Maker reference Maker reference 0155975

015597 - VIS S01559700

More information

Quantity required : 2
564629 - COLLIER

13
P2R reference P2R reference 67068
Maker reference Maker reference 564629

564629 - COLLIER

More information

Quantity required : 1
289514 - JOINT

14
P2R reference P2R reference 66224
Maker reference Maker reference 289514

289514 - JOINT

More information

Quantity required : 1
