Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2005-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

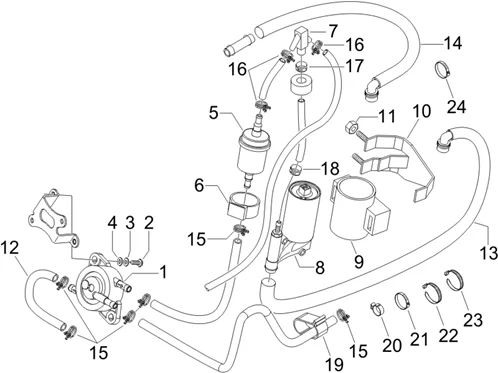

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/155/Runner_50_Pure_Jet_2005-2006_02.53.PNG)
1 |
640514 - POMPE ALIMENTATION More informationQuantity required : 1 |
||||||
|
2 |
624248 - ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/1/img/81351.jpg)
3 |
FUEL PUMP SUPPORT "PIAGGIO GENUINE PART" 50 NRG INJECTION/GILERA 50 RUNNER INJECTION -577753- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
4 |
015558 - VIS More informationQuantity required : 2 |
||||||
|
5 |
007631 - RONDELLE S00763100 More informationQuantity required : 2 |
||||||
|
6 |
949588 - TUYAU RETOUR More informationQuantity required : 1 |
||||||
|
7 |
577811 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
|
9 |
949594 - TUYAU More informationQuantity required : 1 |
||||||
|
10 |
577811 - TUYAU CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
11 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
12 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
15 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
16 |
CM002907 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.JPG)
17 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/8/img/66118.jpg)
18 |
272842 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/4/8/img/81348.jpg)
19 |
577710 - RACCORD T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
20 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
21 |
SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
22 |
097733 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
23 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/0/3/img/95203.jpg)
24 |
CM018101 - TUBE L=37 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
25 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
26 |
CM001905 - COLLIER More informationQuantity required : 1 |
