Vehicle Exploded View - GILERA RUNNER 125 VX 4T Race
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

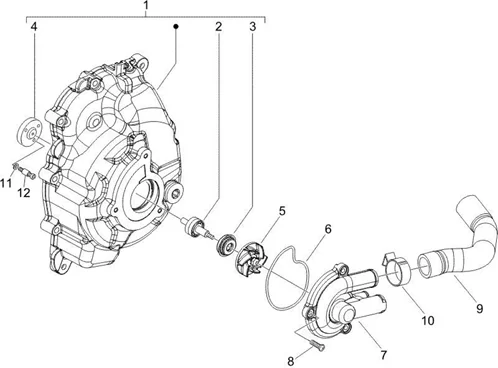

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/193/Runner_125_VX_4T_Race_01.19.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/7/img/69567.jpg)
1 |
WATER PUMP "PIAGGIO GENUINE PART" 125 MP3, X7, X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY AVEC CARTER -8482585- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/6/0/img/69360.jpg)
2 |
WATER PUMP SHAFT "PIAGGIO GENUINE PART" 125 MP3, X7, X8, X9, X-EVO, VESPA GTS/GILERA 125 NEXUS/APRILIA 125-250 ATLANTIC -8456335- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
3 |
WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/3/img/70443.jpg)
4 |
WATER PUMP DRIVE KEY "PIAGGIO GENUINE PART" 125 MP3, X7, X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY -872908- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/6/img/69326.jpg)
5 |
WATER PUMP IMPELLER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -844730- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
6 |
O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -485080- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/6/img/66706.jpg)
7 |
WATER PUMP COVER "PIAGGIO GENUINE PART" 125 X8, X9, VESPA GT, BEVERLY/GILERA 125 RUNNER/APRILIA 125 ATLANTIC, SCARABEO -486237- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
8 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/9/0/img/70690.jpg)
9 |
COOLANT HOSE - WATER PUMP TO CYLINDER "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125 CC -878666- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
10 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/2/img/68762.jpg)
11 |
WATER PUMP DRIVE GEAR WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -828535- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/1/img/68771.jpg)
12 |
SCREW - FOR WATER PUMP DRIVE "PIAGGIO GENUINE PART" 125 MP3, VESPA GTS, X-EVO 2007>, FLY, VESPA LX 2005>, X9 2003>/GILERA 125 NEXUS 2007>, RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -82869R- More informationQuantity required : 3 |
