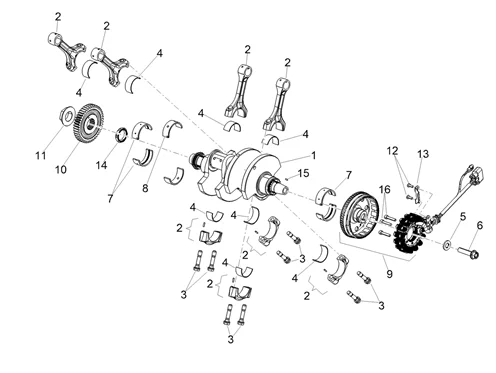

Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2021 (EMEA) APRILIA

Moteur : 03.16 ARBRE MOTEUR
Arbre moteur
Search
1A018892LL - CRANKSHAFT ASSY LL

1
P2R reference P2R reference 176228
Maker reference Maker reference 1A018892LL

1A018892LL - CRANKSHAFT ASSY LL

More information

Quantity required : 1

1A018892MM - CRANKSHAFT ASSY MM

1
P2R reference P2R reference 176229
Maker reference Maker reference 1A018892MM

1A018892MM - CRANKSHAFT ASSY MM

More information

Quantity required : 1

1A018892NN - CRANKSHAFT ASSY NN

1
P2R reference P2R reference 176230
Maker reference Maker reference 1A018892NN

1A018892NN - CRANKSHAFT ASSY NN

More information

Quantity required : 1

1A018892OO - CRANKSHAFT ASSY OO

1
P2R reference P2R reference 176231
Maker reference Maker reference 1A018892OO

1A018892OO - CRANKSHAFT ASSY OO

More information

Quantity required : 1

1A018892PP - CRANKSHAFT ASSY PP

1
P2R reference P2R reference 176232
Maker reference Maker reference 1A018892PP

1A018892PP - CRANKSHAFT ASSY PP

More information

Quantity required : 1

2A000622AA - BIELLE CPL. AA

2
P2R reference P2R reference 145525
Maker reference Maker reference 2A000622AA

2A000622AA - BIELLE CPL. AA

More information

Quantity required : 1

2A000622BB - BIELLE COMPL. CLASS BB

2
P2R reference P2R reference 145526
Maker reference Maker reference 2A000622BB

2A000622BB - BIELLE COMPL. CLASS BB

More information

Quantity required : 1

2A000622CC - BIELLE COMPL. CLASS CC

2
P2R reference P2R reference 145527
Maker reference Maker reference 2A000622CC

2A000622CC - BIELLE COMPL. CLASS CC

More information

Quantity required : 1

1A019988DD- BIELLE COMPL. CLASS DD

2
P2R reference P2R reference 211911
Maker reference Maker reference 2A000622DD
Replaced by référence Replaced by référence 145528

1A019988DD- BIELLE COMPL. CLASS DD

More information

Quantity required : 1

2A000622EE - BIELLE CPL. EE

2
P2R reference P2R reference 149342
Maker reference Maker reference 2A000622EE

2A000622EE - BIELLE CPL. EE

More information

Quantity required : 1

1A019988DD- BIELLE COMPL. CLASS DD

2
P2R reference P2R reference 211911
Maker reference Maker reference 1A019988DD
Replaced by référence Replaced by référence 145528

1A019988DD- BIELLE COMPL. CLASS DD

More information

Quantity required : 1

SCREW - FOR CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -B045844

3
P2R reference P2R reference 62633
Maker reference Maker reference B045844

SCREW - FOR CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -B045844

More information

Quantity required : 8

1A0252080V - CONROD HALF BEARING

4
P2R reference P2R reference 211180
Maker reference Maker reference 1A0252080V

1A0252080V - CONROD HALF BEARING

More information

Quantity required : 4

1A0252080B - CONROD HALF BEARING

4
P2R reference P2R reference 211179
Maker reference Maker reference 1A0252080B

1A0252080B - CONROD HALF BEARING

More information

Quantity required : 4

1A0252080B - CONROD HALF BEARING

4
P2R reference P2R reference 211179
Maker reference Maker reference 2A0008370B

1A0252080B - CONROD HALF BEARING

More information

Quantity required : 4

2A0008370G - DEMI-ROULLEMENT

4
P2R reference P2R reference 146526
Maker reference Maker reference 2A0008370G
Replaced by référence Replaced by référence 212051

2A0008370G - DEMI-ROULLEMENT

More information

Quantity required : 4

2A0008370V - DEMI-ROULLEMENT

4
P2R reference P2R reference 146527
Maker reference Maker reference 2A0008370V
Replaced by référence Replaced by référence 211180

2A0008370V - DEMI-ROULLEMENT

More information

Quantity required : 4

DEMI COUSSINET DE BIELLE JAUNE ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -1A0252080G

4
P2R reference P2R reference 212051
Maker reference Maker reference 1A0252080G

DEMI COUSSINET DE BIELLE JAUNE ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -1A0252080G

More information

Quantity required : 4

897478 - RONDELLE

5
P2R reference P2R reference 70875
Maker reference Maker reference 897478

897478 - RONDELLE

More information

Quantity required : 1

SCREW - FOR IGNITION ROTOR (12x1,25x50) "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9 -857206

6
P2R reference P2R reference 69753
Maker reference Maker reference 857206

SCREW - FOR IGNITION ROTOR (12X1,25X50) "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9 -857206

More information

Quantity required : 1

BEARING SHELL - YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320G

7
P2R reference P2R reference 108941
Maker reference Maker reference 8571320G

BEARING SHELL - YELLOW "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -8571320G

More information

Quantity required : 4

8571320N - DEMI ROULEMENT

7
P2R reference P2R reference 108942
Maker reference Maker reference 8571320N

8571320N - DEMI ROULEMENT

More information

Quantity required : 4

8571320V - DEMI ROULEMENT

7
P2R reference P2R reference 108944
Maker reference Maker reference 8571320V

8571320V - DEMI ROULEMENT

More information

Quantity required : 4

8571300G - DEMI ROULEMENT

8
P2R reference P2R reference 108936
Maker reference Maker reference 8571300G

8571300G - DEMI ROULEMENT

More information

Quantity required : 2

8571300N - DEMI ROULEMENT

8
P2R reference P2R reference 108937
Maker reference Maker reference 8571300N

8571300N - DEMI ROULEMENT

More information

Quantity required : 2

8571300V - DEMI ROULEMENT

8
P2R reference P2R reference 108939
Maker reference Maker reference 8571300V

8571300V - DEMI ROULEMENT

More information

Quantity required : 2

1A018304 - FLYWHEEL COMPLETE

9
P2R reference P2R reference 176048
Maker reference Maker reference 1A018304

1A018304 - FLYWHEEL COMPLETE

More information

Quantity required : 1

2A000535 - ENGRENAGE

10
P2R reference P2R reference 108590
Maker reference Maker reference 2A000535

2A000535 - ENGRENAGE

More information

Quantity required : 1

B043204 - BAGUE

11
P2R reference P2R reference 62046
Maker reference Maker reference B043204

B043204 - BAGUE

More information

Quantity required : 1

1A002951 - VIS

12
P2R reference P2R reference 139029
Maker reference Maker reference 1A002951

1A002951 - VIS

More information

Quantity required : 2

1A016340 - PLATE

13
P2R reference P2R reference 176051
Maker reference Maker reference 1A016340

1A016340 - PLATE

More information

Quantity required : 1

897474 - ENTRETOISE

14
P2R reference P2R reference 42772
Maker reference Maker reference 897474

897474 - ENTRETOISE

More information

Quantity required : 1

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

15
P2R reference P2R reference 63721
Maker reference Maker reference 0002675

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

More information

Quantity required : 1

1A002951 - VIS

16
P2R reference P2R reference 139029
Maker reference Maker reference 1A002951

1A002951 - VIS

More information

Quantity required : 3
