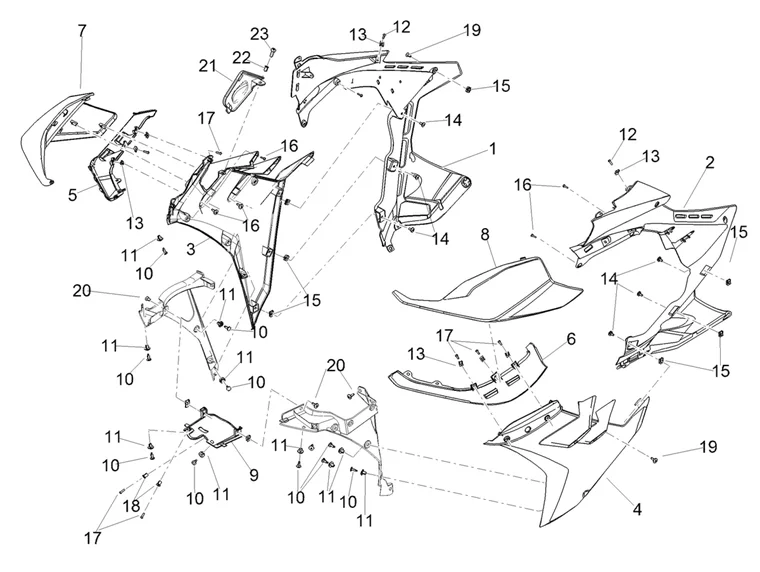

Vehicle Exploded View - APRILIA RSV4 1100 Factory E5 ABS 2021-22 (EMEA)

	P2R reference	176187
	Maker reference	2B008012

2B008012 - RIGHT AIR EXTRACTOR

	P2R reference	176188
	Maker reference	2B008013

2B008013 - LEFT AIR EXTRACTOR

	P2R reference	176268
	Maker reference	2B007131000XN2

2B007131000XN2 - R.H. BODY SIDE

	P2R reference	176190
	Maker reference	2B007131

2B007131 - R.H. BODY SIDE

	P2R reference	195947
	Maker reference	2B007131000XN5

2B007131000XN5 - RIGHT BODY SIDE

	P2R reference	195948
	Maker reference	2B007132000XN5

2B007132000XN5 - LEFT BODY SIDE

	P2R reference	176269
	Maker reference	2B007132000XN2

2B007132000XN2 - L.H. BODY SIDE

	P2R reference	176192
	Maker reference	2B007132

2B007132 - L.H. BODY SIDE

	P2R reference	195949
	Maker reference	2B008014000XN5

2B008014000XN5 - RIGHT INTERNAL WING

	P2R reference	176193
	Maker reference	2B008014

2B008014 - RIGHT INNER WING

	P2R reference	176270
	Maker reference	2B008014000XR4

2B008014000XR4 - RIGHT INNER WING

	P2R reference	195950
	Maker reference	2B008015000XN5

2B008015000XN5 - LEFT INTERNAL WING

	P2R reference	176271
	Maker reference	2B008015000XR4

2B008015000XR4 - LEFT INNER WING

	P2R reference	176196
	Maker reference	2B008015

2B008015 - LEFT INNER WING

	P2R reference	195951
	Maker reference	2B006982000XN5

2B006982000XN5 - RIGH EXTERNAL WING

	P2R reference	176198
	Maker reference	2B006982

2B006982 - RIGHT WINGLETS

	P2R reference	176272
	Maker reference	2B006982000XR4

2B006982000XR4 - RIGHT WINGLETS

	P2R reference	195952
	Maker reference	2B006983000XN5

2B006983000XN5 - LEFT EXTERNAL WING

	P2R reference	176273
	Maker reference	2B006983000XR4

2B006983000XR4 - LEFT WINGLETS

	P2R reference	176200
	Maker reference	2B006983

2B006983 - LEFT WINGLETS

	P2R reference	176201
	Maker reference	2B006981

2B006981 - FRONT.LOWER PROTECTION

	P2R reference	71769
	Maker reference	AP8144563

AP8144563 - RIVETTO IN PLASTICA MASCHIO

	P2R reference	71773
	Maker reference	AP8144616

CLIP FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF MOTORBIKES -AP8144616-

	P2R reference	158977
	Maker reference	581957

581957 - VIS

	P2R reference	71177
	Maker reference	AP8102381

AP8102381 - CLIP

	P2R reference	70837
	Maker reference	896174

SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174-

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	71876
	Maker reference	AP8150413

SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413-

	P2R reference	46742
	Maker reference	AP8121184

AP8121184 - VITE TBCE M4X14

	P2R reference	71770
	Maker reference	AP8144564

AP8144564 - CAOUTCHOUC AVEC INSERT

	P2R reference	71894
	Maker reference	AP8150500

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500-

	P2R reference	214483
	Maker reference	2B014101

2B014101 - INOX HEXAGON COCKET SCREWS M5X12

	P2R reference	71961
	Maker reference	AP8152302
	Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

	P2R reference	195953
	Maker reference	2B008356000XN5

2B008356000XN5 - RIGHT SIDE DOOR

	P2R reference	176274
	Maker reference	2B008356000XN2

2B008356000XN2 - RIGHT SIDE DOOR

	P2R reference	176202
	Maker reference	2B008356

2B008356 - RIGHT SIDE DOOR

	P2R reference	71770
	Maker reference	AP8144564

AP8144564 - CAOUTCHOUC AVEC INSERT

	P2R reference	46742
	Maker reference	AP8121184

AP8121184 - VITE TBCE M4X14
