Vehicle Exploded View - APRILIA RSV4 1100 Factory E5+ ABS 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

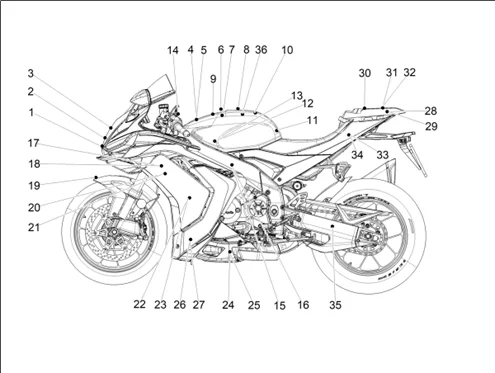

Carrosserie : 02.19 DÉCALCO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_02.19.png)
1 |
2B003431 - TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
2 |
2H007199 - AUTOCOLLANT FRONTAL CARENAGE More informationQuantity required : 1 |
||||||
|
3 |
2H007200 - AUTOCOLLANT FRONTAL CARENAGE More informationQuantity required : 1 |
||||||
|
4 |
2H006740 - DECALCO SUP.RESERVOIR DTE More informationQuantity required : 1 |
||||||
|
5 |
2H006741 - DECALCO SUP.RESERVOIR GCHE More informationQuantity required : 1 |
||||||
|
6 |
2H006742 - DECALCO SUP.RESERVOIR DTE More informationQuantity required : 1 |
||||||
|
7 |
2H006743 - DECALCO SUP.RESERVOIR GCHE More informationQuantity required : 1 |
||||||
|
8 |
2H006744 - DECALCO RESERVOIR More informationQuantity required : 1 |
||||||
|
9 |
2H006745 - STICKER More informationQuantity required : 1 |
||||||
|
10 |
2H006746 - STICKER More informationQuantity required : 1 |
||||||
|
11 |
2H006747 - STICKER More informationQuantity required : 1 |
||||||
|
12 |
2H006748 - BANDE AUTOCOLLANTE POUR RESERVOIR D More informationQuantity required : 1 |
||||||
|
13 |
2H006749 - BANDE AUTOCOLLANTE POUR RESERVOIR G More informationQuantity required : 1 |
||||||
|
14 |
893819 - DECALCO More informationQuantity required : 1 |
||||||
|
15 |
893819 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
2H007202 - STICKER BANDE G. More informationQuantity required : 1 |
||||||
|
17 |
2H007203 - STICKER BANDE G. More informationQuantity required : 1 |
||||||
|
18 |
2H007204 - STICKER CARENAGE LATERAL D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/1/5/img/159015.jpg)
19 |
2H003453 - DECALCO More informationQuantity required : 1 |
||||||
|
20 |
2H003453 - DECALCO More informationQuantity required : 1 |
||||||
|
21 |
2H007205 - STICKER CARENAGE LAT. D. More informationQuantity required : 1 |
||||||
|
22 |
2H007210 - STICKER CARENAGE LATERAL G More informationQuantity required : 1 |
||||||
|
23 |
2H007206 - STICKER CARENAGE LAT. D. More informationQuantity required : 1 |
||||||
|
24 |
2H007211 - STICKER CARENAGE LATERAL G More informationQuantity required : 1 |
||||||
|
25 |
2H007207 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
26 |
2H007212 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
27 |
2H007208 - STICKER CARENAGE INFERIEUR G More informationQuantity required : 1 |
||||||
|
28 |
2H006761 - STICKER More informationQuantity required : 1 |
||||||
|
29 |
2H006760 - STICKER More informationQuantity required : 1 |
||||||
|
30 |
2H006762 - STICKER COUVRE-SELLE More informationQuantity required : 1 |
||||||
|
31 |
2H006763 - STICKER More informationQuantity required : 1 |
||||||
|
32 |
2H006764 - STICKER More informationQuantity required : 1 |
||||||
|
33 |
2H006764 - STICKER More informationQuantity required : 1 |
||||||
|
34 |
2H007214 - DECALCO QUEUE D More informationQuantity required : 1 |
||||||
|
35 |
2B008510 - TIRES PRESS CHAIN TENSION STICKER More informationQuantity required : 1 |
||||||
|
36 |
2B008510 - TIRES PRESS CHAIN TENSION STICKER More informationQuantity required : 1 |
