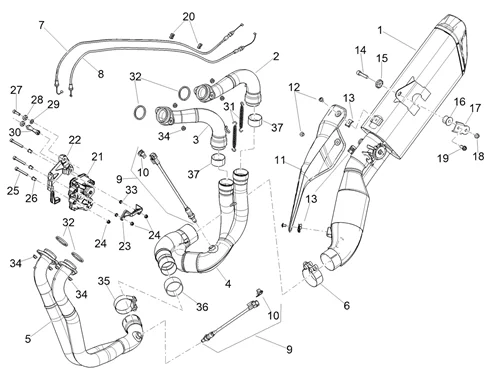

Vehicle Exploded View - APRILIA RSV4 1100 E5 ABS 2021 (EMEA)

	P2R reference	176062
	Maker reference	2B008865

2B008865 - EXHAUST MUFFLER

	P2R reference	176235
	Maker reference	2B006940

2B006940 - RIGHT REAR HEADER PIPE

	P2R reference	176236
	Maker reference	2B006941

2B006941 - LEFT REAR HEADER PIPE

	P2R reference	176237
	Maker reference	2B006938

2B006938 - MIDDLE EXHAUST PIPE

	P2R reference	176238
	Maker reference	2B006939

2B006939 - FRONT PRINCIPAL EXHAUST PIPE

	P2R reference	99862
	Maker reference	976521

976521 - FASCETTA STRIGITUBO PER SILENZIATORE

	P2R reference	176065
	Maker reference	2B007127

2B007127 - HEXAHUST VALVE OPENING CABLE

	P2R reference	176066
	Maker reference	2B007128

2B007128 - HEXAHUST VALVE CLOSING CABLE

	P2R reference	171615
	Maker reference	1A014335

1A014335 - LAMBDA SENSOR

	P2R reference	172943
	Maker reference	1A015201

1A015201 - CLIP COUPLER

	P2R reference	176063
	Maker reference	2B007528

2B007528 - FINISHED MUFFLER HEAT SHIELD

	P2R reference	42939
	Maker reference	898385

898385 - VIS

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	71842
	Maker reference	AP8150236

AP8150236 - VIS

	P2R reference	46743
	Maker reference	AP8121199

AP8121199 - BUSSOLA FISS.SILENZIATORI

	P2R reference	156436
	Maker reference	2L002131

2L002131 - DOUILLE ENTRETOISE;

	P2R reference	156437
	Maker reference	2L002133

2L002133 - PATTE

	P2R reference	71883
	Maker reference	AP8150431

AP8150431 - ECROU AUTOFR. BAS

	P2R reference	71947
	Maker reference	AP8152285

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285-

	P2R reference	98064
	Maker reference	2B000276

2B000276 - GRAFFETTA FISSAGGIO TUBI

	P2R reference	145827
	Maker reference	2D000263

2D000263 - ACTIONNEUR

	P2R reference	145608
	Maker reference	2B003443

2B003443 - PATTE

	P2R reference	145627
	Maker reference	2B003577

2B003577 - SUPPORT

	P2R reference	176239
	Maker reference	AP8150115

AP8150115 - ECROU AUTOFR. BAS

	P2R reference	71875
	Maker reference	AP8150403

AP8150403 - VIS

	P2R reference	132279
	Maker reference	GU91120607

GU91120607 - BAGUE 6,4X8,4X10,5

	P2R reference	71815
	Maker reference	AP8150044

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044-

	P2R reference	145661
	Maker reference	2B003714

2B003714 - JOINT

	P2R reference	176064
	Maker reference	2B008110

2B008110 - ENTRETOISE

	P2R reference	71440
	Maker reference	AP8121170

AP8121170 - RESSORT

	P2R reference	214285
	Maker reference	852090

JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220-

	P2R reference	214285
	Maker reference	2B012220

JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220-

	P2R reference	71488
	Maker reference	AP8121811

AP8121811 - "DOUILLE EN ""T"""

	P2R reference	66509
	Maker reference	436947

NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947-

	P2R reference	176240
	Maker reference	2B007623

2B007623 - WRENCH CLAMP D 51 55

	P2R reference	176241
	Maker reference	2B007148

2B007148 - WIREMESH GASKET

	P2R reference	176242
	Maker reference	2B007146

2B007146 - WIREMESH GASKET
