Vehicle Exploded View - APRILIA RSV4 1000 APRC R 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

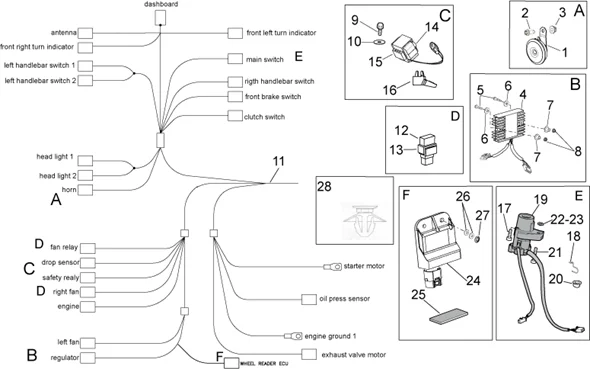

Chassis : 28.33 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/560/RSV4_1000_APRC_R_2011-2012_28.33.PNG)
1 |
890979 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
3 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376 More informationQuantity required : 1 |
||||||
|
4 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4, 1100 TUONO -B043488 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/6/img/50956.jpg)
5 |
AP8152128 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
6 |
AP8150179 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
7 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
8 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/7/6/img/46976.jpg)
10 |
AP8121991 - DOUILLE; More informationQuantity required : 1 |
||||||
|
11 |
895844 - CABLAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
12 |
RELAY 12V/30A "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA/MOTO-GUZZI -AP8224462 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
13 |
AP8220283 - CAOUTCHOUC More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
14 |
584509 - SENSOR DE CHUTE More informationQuantity required : 1 |
||||||
|
15 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
16 |
858916 - SUPPORT DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/1/img/71931.jpg)
17 |
AP8152238 - VIS A ARRACHEMENT M8X28 More informationQuantity required : 1 |
||||||
|
18 |
AP8121475 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
19 |
858580 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
20 |
SHOULDER WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO 125 CC APRILIA/MOTO-GUZZI BREVA, NORGE, STELVIO -AP8121096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
21 |
AP8150236 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
22 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
AP8152154 - RONDELLE More informationQuantity required : 2 |
||||||
|
24 |
B043676 - CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
25 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/3/img/71743.jpg)
26 |
RUBBER SPACER "PIAGGIO GENUINE PART" 500 PM3, BEVERLY/APRILIA ATLANTIC, LEONARDO, RSV-4 -AP8144065 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/6/img/71926.jpg)
27 |
AP8152179 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
28 |
890760 - SUPPORT More informationQuantity required : 5 |
