Vehicle Exploded View - APRILIA RSV4 1000 RSV 1000 4V R 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

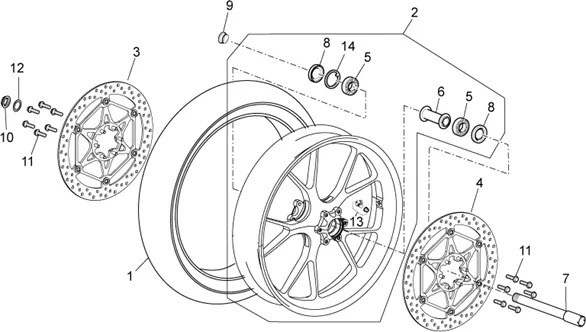

Chassis : 28.26 ROUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/557/RSV_1000_4V_R_2009-2010_28.26.PNG)
1 |
897596 - PNEU AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/4/5/1/img/48451.jpg)
2 |
FRONT WHEEL 3,5''X17'' BLACK "PIAGGIO GENUINE PART" APRILIA 750-1200 DORSODURO, 1000 RSV-2, RSV-4, 750 SHIVER -AP8128228 More informationQuantity required : 1 |
||||||
|
3 |
893135 - DISQUE FREIN AVANT D.320 More informationQuantity required : 1 |
||||||
|
4 |
893136 - DISQUE FREIN AVANT D.320 More informationQuantity required : 1 |
||||||
|
5 |
AP8125777 - ROULEMENT More informationQuantity required : 2 |
||||||
|
6 |
AP8128169 - DISTANZIALE INT.RUOTA ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/4/img/69644.jpg)
7 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV, TUONO, 1200 DORSODURO, CAPONORD -85263R More informationQuantity required : 1 |
||||||
|
8 |
AP8125773 - BAGUE D'ETANCHEITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/5/img/71575.jpg)
9 |
SPACER- FOR FRONT WHEEL-OUTER RIGHT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8125728- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
10 |
AP8152335 - ECROU DE ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
12 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
13 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" COMMON FOR APRILIA /MOTO-GUZZI MOTORBIKES -AP8101744 More informationQuantity required : 1 |
||||||
|
14 |
AP8125779 - BAGUE SEEGER More informationQuantity required : 1 |
