Vehicle Exploded View - APRILIA RS 125 2T NOABS 2006-2010 (APAC EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

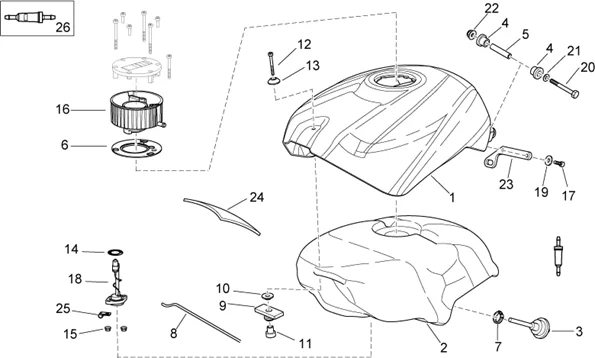

Chassis : 28.10 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/935/RS_125_2T_NOABS_2006-2010_(APAC_EMEA_NAFTA)_28.10.png)
1 |
AP8184885 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8179520 - COPRISERBATOIO BENZ.V.BIANCO A More informationQuantity required : 1 |
||||||
|
1 |
AP8184895 - CACHE-RESERVOIR, BLANC More informationQuantity required : 1 |
||||||
|
1 |
AP8179685 - COPRISERBATOIO NERO More informationQuantity required : 1 |
||||||
|
1 |
AP8184607 - CACHE-RESERVOIR, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
AP8184744 - CACHE-RESERVOIR, VERT More informationQuantity required : 1 |
||||||
|
1 |
AP8269328 - CACHE-RESERVOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8184721 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8184857 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8179179 - COPRISERBATOIO BENZ.V.NERO More informationQuantity required : 1 |
||||||
|
1 |
AP8179915 - UNDER PAN RED More informationQuantity required : 1 |
||||||
|
2 |
AP8179394 - SERBATOIO BENZ.GREZZO More informationQuantity required : 1 |
||||||
|
3 |
AP8201824 - ROBINET ESSENCE A DEPRESS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/1/img/46631.jpg)
4 |
AP8120709 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/9/img/50959.jpg)
5 |
SPACER- FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 -AP8152153- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/4/1/img/71041.jpg)
6 |
975608 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/2/img/71152.jpg)
7 |
AP8101573 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/8/5/img/46785.jpg)
8 |
AP8121324 - TIGE OUV. RESERVOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
9 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/5/img/71435.jpg)
10 |
AP8121114 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/1/img/57001.jpg)
11 |
AP8221106 - DOUILLE LEVIER FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
12 |
AP8150202 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
13 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO -AP8121819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/7/7/img/46677.jpg)
14 |
AP8120869 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
15 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
16 |
AP8179343 - VASCA TAPPO SERBATOIO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/9/img/71819.jpg)
17 |
AP8150050 - VIS More informationQuantity required : 2 |
||||||
|
18 |
FUEL LEVEL SENSOR "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1997>2000, 125 RS 2006>2010 -AP8124437- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
19 |
AP8150248 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
20 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
21 |
AP8150014 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
23 |
AP8144177 - DISTANZIALE SERBATOIO BE More informationQuantity required : 1 |
||||||
|
24 |
AP8117073 - ADHESIVE SPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/4/img/71164.jpg)
25 |
AP8101890 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/7/6/img/67776.jpg)
26 |
FUEL FILTER "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO -624522 More informationQuantity required : 1 |
