Vehicle Exploded View - GILERA RCR 50 2013-2015 GILERA

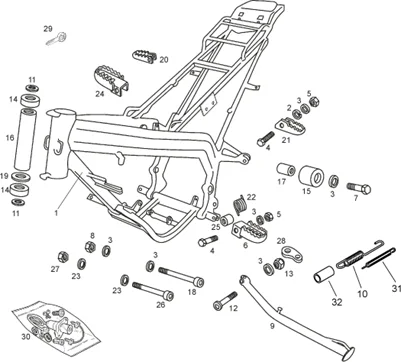

Chassis : 66.01 CHASSIS
Chassis
Search
FRAME "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -86697400WGB-

1
P2R reference P2R reference 70272
Maker reference Maker reference 86697400WGB

FRAME "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2011> -86697400WGB-

More information

Quantity required : 0
ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

3
P2R reference P2R reference 63787
Maker reference Maker reference 004020800015

ENGINE SUPPORT FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00402080001-

More information

Quantity required : 0
SCREW - FOR FOOTREST M8X40 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00022084021-

4
P2R reference P2R reference 63713
Maker reference Maker reference 000220840215

SCREW - FOR FOOTREST M8X40 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00022084021-

More information

Quantity required : 0
NUT - SAFETY NUT (8x125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

5
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

More information

Quantity required : 0
LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201312-

6
P2R reference P2R reference 64667
Maker reference Maker reference 00H02201312

LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201312-

More information

Quantity required : 0
SCREW 8x45 for chain guide "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805-

7
P2R reference P2R reference 72730
Maker reference Maker reference B016805

SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805-

More information

Quantity required : 0
00262080022 - ECROU

8
P2R reference P2R reference 63767
Maker reference Maker reference 002620800225

00262080022 - ECROU

More information

Quantity required : 0
SIDE STAND "PIAGGIO GENUINE PART" GILERA 50 RCR 2011> -00H00819012A-

9
P2R reference P2R reference 64319
Maker reference Maker reference 00H00819012A

SIDE STAND "PIAGGIO GENUINE PART" GILERA 50 RCR 2011> -00H00819012A-

More information

Quantity required : 0
RETURN SPRING FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -867291-

10
P2R reference P2R reference 70320
Maker reference Maker reference 867291

RETURN SPRING FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -867291-

More information

Quantity required : 0
STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630-

11
P2R reference P2R reference 63672
Maker reference Maker reference 000089026305

STEERING FLAT WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00008902630-

More information

Quantity required : 0
SCREW - FOR STAND FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00805072-

12
P2R reference P2R reference 64316
Maker reference Maker reference 00H00805072

SCREW - FOR STAND FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H00805072-

More information

Quantity required : 0
NUT - SAFETY NUT (8x125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

13
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

More information

Quantity required : 0
STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205-

14
P2R reference P2R reference 63606
Maker reference Maker reference 000000562055

STEERING COLUMN BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00000056205-

More information

Quantity required : 0
CHAIN GUIDE WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01801771-

15
P2R reference P2R reference 64614
Maker reference Maker reference 00H01801771

CHAIN GUIDE WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -00H01801771-

More information

Quantity required : 0
00H06303401 - TUBE SEPARATION ROULEMENT D

16
P2R reference P2R reference 65042
Maker reference Maker reference 00H06303401

00H06303401 - TUBE SEPARATION ROULEMENT D

More information

Quantity required : 0
SPACER- FOR CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002518790-

17
P2R reference P2R reference 63631
Maker reference Maker reference 000025187905

SPACER- FOR CHAIN GUARD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002518790-

More information

Quantity required : 0
SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272-

18
P2R reference P2R reference 64704
Maker reference Maker reference 00H02500272

SCREW - ENGINE FIXING SCREW M8 "PIAGGIO GENUINE PART" 50 VESPA LX, PRIMAVERA, SPRINT/GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02500272-

More information

Quantity required : 0
00H06500451 - RONDELLE COUSSINET TUBE DIRECT

19
P2R reference P2R reference 65048
Maker reference Maker reference 00H06500451

00H06500451 - RONDELLE COUSSINET TUBE DIRECT

More information

Quantity required : 0
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520096-

20
P2R reference P2R reference 63884
Maker reference Maker reference 00D01520096

RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520096-

More information

Quantity required : 0
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520456-

21
P2R reference P2R reference 63885
Maker reference Maker reference 00D01540456

LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00D01520456-

More information

Quantity required : 0
RIDER FOOTREST SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H04903292-

22
P2R reference P2R reference 64954
Maker reference Maker reference 00H04903292

RIDER FOOTREST SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H04903292-

More information

Quantity required : 0
WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001-

23
P2R reference P2R reference 63789
Maker reference Maker reference 004021000015

WASHER FOR MOTOR SUPPORT AXLE D10.5 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00402100001-

More information

Quantity required : 0
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201302-

24
P2R reference P2R reference 64666
Maker reference Maker reference 00H02201302

RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX 2006> -00H02201302-

More information

Quantity required : 0
RING FOR FOOTREST LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00002215152-

25
P2R reference P2R reference 63628
Maker reference Maker reference 000022151525

RING FOR FOOTREST LINK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RX, SX -00002215152-

More information

Quantity required : 0
SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03000272-

26
P2R reference P2R reference 64748
Maker reference Maker reference 00H03000272

SCREW - ENGINE FIXING SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03000272-

More information

Quantity required : 0
NUT - SAFETY NUT (8x125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

27
P2R reference P2R reference 63715
Maker reference Maker reference 000231080005

NUT - SAFETY NUT (8X125) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -00023108000-

More information

Quantity required : 0
STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468-

28
P2R reference P2R reference 64310
Maker reference Maker reference 2B004468

STAND SPRING PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -2B004468-

More information

Quantity required : 0
00F01810411 - CLEF

29
P2R reference P2R reference 63909
Maker reference Maker reference 00F01810411

00F01810411 - CLEF

More information

Quantity required : 0
COMPLETE LOCK KIT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006> -00H059082515-

30
P2R reference P2R reference 65016
Maker reference Maker reference 00H059082515

COMPLETE LOCK KIT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006> -00H059082515-

More information

Quantity required : 0
RETURN SPRING FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -867290-

31
P2R reference P2R reference 70319
Maker reference Maker reference 867290

RETURN SPRING FOR STAND "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -867290-

More information

Quantity required : 0
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524-

32
P2R reference P2R reference 71185
Maker reference Maker reference AP8102524

SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524-

More information

Quantity required : 0
