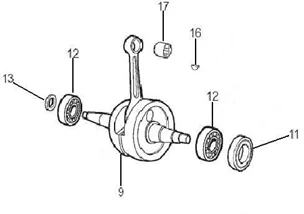

Vehicle Exploded View - GILERA RCR 50 2006 GILERA

Moteur : 01.06 VILEBREQUIN
Vilebrequin
Search
CRANKSHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS, RX,SX/GILERA 50 SMT, RCR -83052R-

9
P2R reference P2R reference 139422
Maker reference Maker reference 83052R

CRANKSHAFT "PIAGGIO GENUINE PART" APRILIA 50 RS, RX,SX/GILERA 50 SMT, RCR -83052R-

More information

Quantity required : 4
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020-

11
P2R reference P2R reference 69413
Maker reference Maker reference 847020

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020-

More information

Quantity required : 8
CRANKSHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>/APRILIA 50 SX, RX, RS 2006> -847172-

12
P2R reference P2R reference 69475
Maker reference Maker reference 847172

CRANKSHAFT BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2003>/APRILIA 50 SX, RX, RS 2006> -847172-

More information

Quantity required : 4
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020-

13
P2R reference P2R reference 69413
Maker reference Maker reference 847020

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847020-

More information

Quantity required : 1
WOODRUFF KEY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -847215-

16
P2R reference P2R reference 69488
Maker reference Maker reference 847215

WOODRUFF KEY "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS -847215-

More information

Quantity required : 4
PISTON CAGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847529-

17
P2R reference P2R reference 69523
Maker reference Maker reference 847529

PISTON CAGE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -847529-

More information

Quantity required : 4
