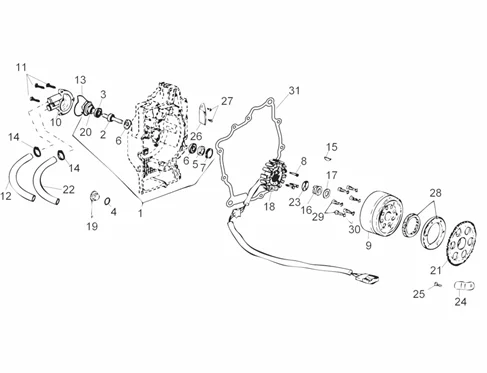

Vehicle Exploded View - DERBI RAMBLA 300 Rambla 300 E3 2010-2011 (EMEA)

	P2R reference	70714
	Maker reference	8798315

WATER PUMP COVER (COMPLETE) "PIAGGIO GENUINE PART" 250 MP3, X8, X9, X-EVO,250-300 X7, BEVERLY, GTS/APRILIA 125-250-300 ATLANTIC, SPORT-CITY/GILERA 250-300 NEXUS -8798315-

	P2R reference	69327
	Maker reference	8447595

WATER PUMP SHAFT- WITH BEARINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE 125-250-300 CC -8447595

	P2R reference	68876
	Maker reference	82991R

WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	70443
	Maker reference	872908

WATER PUMP DRIVE KEY "PIAGGIO GENUINE PART" 125 MP3, X7, X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY -872908

	P2R reference	68679
	Maker reference	82755R

BEARING FOR WATER PUMP SHAFT (28X8X9) "PIAGGIO GENUINE PART" 125-300 BEVERLY, VESPA GTS, 125 X9, X8, X10/APRILIA 125-250 SCARABEO, SPORT-CITY, ATLANTIC -82755R-

	P2R reference	68801
	Maker reference	82897R

WATER PUMP GASKET (20X30X5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -82897R-

	P2R reference	67347
	Maker reference	597564

597564 - VIS

	P2R reference	70460
	Maker reference	873034

873034 - ROTOR

	P2R reference	70666
	Maker reference	877528

WATER PUMP COVER (3 HOSES) "PIAGGIO GENUINE PART" 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585) -877528 -

	P2R reference	68770
	Maker reference	828662

SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662-

	P2R reference	70701
	Maker reference	878940

COOLANT HOSE "PIAGGIO GENUINE PART" (FROM WATER PUMP TO CALORSTAT) PIAGGIO 125-250-300 MAXISCOOTER -878940-

	P2R reference	66671
	Maker reference	485080

O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -485080-

	P2R reference	72866
	Maker reference	CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

	P2R reference	63674
	Maker reference	0000975

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -000097-

	P2R reference	163008
	Maker reference	842388

842388 - ECROU

	P2R reference	69229
	Maker reference	842385

842385 - RONDELLE

	P2R reference	67182
	Maker reference	58070R

IGNITION STATOR "PIAGGIO GENUINE PART" 125 MP3, X7, VESPA GTS, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR MAX (MOTEUR INJECTION) -58070R-

	P2R reference	68810
	Maker reference	8290405

TIMING CONTROL CAP - ON WATER PUMP HOUSING "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -8290405-

	P2R reference	69326
	Maker reference	844730

WATER PUMP IMPELLER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -844730

	P2R reference	68666
	Maker reference	82737R

ELECTRIC STARTER GEAR "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -82737R-

	P2R reference	70701
	Maker reference	878940

COOLANT HOSE "PIAGGIO GENUINE PART" (FROM WATER PUMP TO CALORSTAT) PIAGGIO 125-250-300 MAXISCOOTER -878940-

	P2R reference	69231
	Maker reference	842390

WATER PUMP DRIVE SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -842390-

	P2R reference	69575
	Maker reference	848724

848724 - PALQUE

	P2R reference	109085
	Maker reference	1A003108

1A003108 - VIS

	P2R reference	69197
	Maker reference	841659

841659 - PLAQUETTE

	P2R reference	109024
	Maker reference	1A003111

1A003111 - VIS M5X10

	P2R reference	149153
	Maker reference	1A0093875

STARTER FREEWHEEL (6 HOLES) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-350-400-500 -1A0093875-

	P2R reference	70656
	Maker reference	877289

877289 - VIS

	P2R reference	66579
	Maker reference	479515

479515 - RONDELLE

	P2R reference	69150
	Maker reference	840504

GASKET FOR IGNITION COVER "PIAGGIO GENUINE PART" 125-250-300 - INJECTION -840504
