Vehicle Exploded View - DERBI RAMBLA 125 Rambla 125 2ver E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

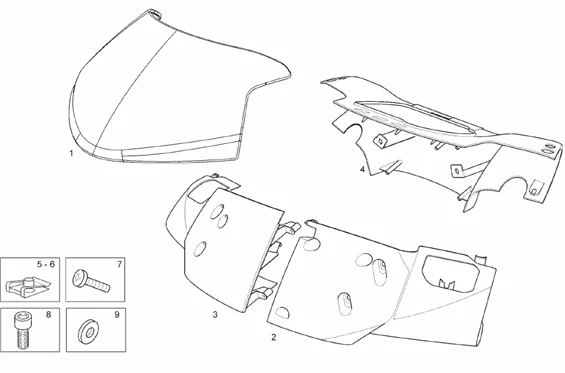

Châssis - parties plastiques - carrosseries : 7 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1107/Rambla_125_2ver_E3_2008_(EMEA)_7.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/1/2/img/72112.jpg)
1 |
AP8184246 - COUVERCLE More informationQuantity required : 1 |
||||||
2 |
AP8184463 - PLANCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/2/img/72122_2.jpg)
3 |
AP8184462 - PLANCHE More informationQuantity required : 1 |
||||||
|
4 |
AP8268979 - SUPPORT TABLEAU DE BORD, BLANC More informationQuantity required : 1 |
||||||
|
4 |
AP8268930 - TABLEAU DE BORD BLEU More informationQuantity required : 1 |
||||||
|
4 |
AP8268923 - SUPPORT PEINT NOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
5 |
AP8102381 - CLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
6 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 1 |
||||||
|
8 |
AP8150416 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
9 |
AP8150011 - RONDELLE More informationQuantity required : 1 |
