Vehicle Exploded View - DERBI RAMBLA 125 Rambla 125-250 E3 2008-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

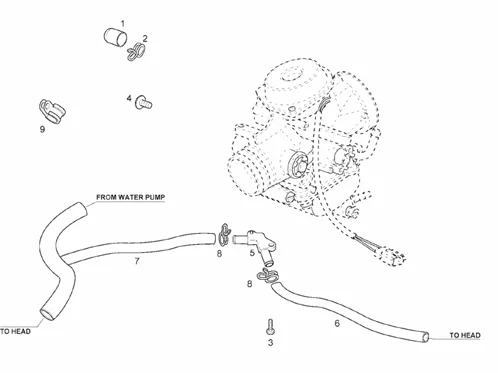

Vues éclatées : 29 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1109/Rambla_125-250_E3_2008-2009_(EMEA)_29.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
1 |
AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
2 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
||||||
3 |
826770 - VIS More informationQuantity required : 1 |
||||||
|
4 |
826826 - VIS More informationQuantity required : 1 |
||||||
|
5 |
842516 - KIT RECHAUFFEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/1/1/img/69311.jpg)
6 |
ENGINE BREATHER HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -844094 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/9/img/69569.jpg)
7 |
COOLANT HOSE-(WITH BY-PASS TO CARB) "PIAGGIO GENUINE PART" 125 X-EVO, X8, X9, VESPA GT, X7, MP3/GILERA 125 NEXUS/APRILIA 125 ATLANTIC, SPORT-CITY -848434 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/0/img/72890.jpg)
8 |
COLLIER DE SERRAGE DURITE (7X10) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/1/img/69541.jpg)
9 |
847778 - PLAQUETTE More informationQuantity required : 1 |
