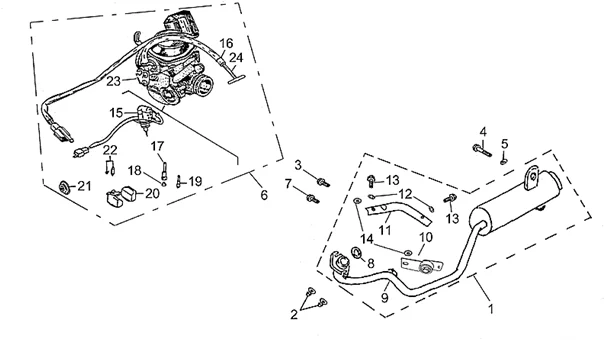

Chassis : 28.15 GROUPE ECHAPPEMENT-CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/310/Quasar_180_2003_28.15.PNG)
1 |
AP8911231 - MARMITTA CPL More informationQuantity required : 1 |
||||||
|
2 |
AP8911015 - DADO M6 More informationQuantity required : 2 |
||||||
|
3 |
AP8910434 - VITE TE FLANG. M8X16 More informationQuantity required : 1 |
||||||
|
6 |
AP8911177 - CARBURATORE CPL. More informationQuantity required : 1 |
||||||
|
8 |
AP8910735 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
11 |
AP8910740 - PROTEZIONE MARMITTA More informationQuantity required : 1 |
||||||
|
14 |
AP8911067 - GUARNIZIONE More informationQuantity required : 2 |
||||||
|
16 |
AP8911078 - ANELLO DI FERMO More informationQuantity required : 1 |
||||||
|
25 |
AP8911221 - MEMBRANA A DEPRESSIONE More informationQuantity required : 1 |
||||||
|
28 |
AP8911228 - MOLLA More informationQuantity required : 2 |
