Vehicle Exploded View - APRILIA QUASAR 100 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

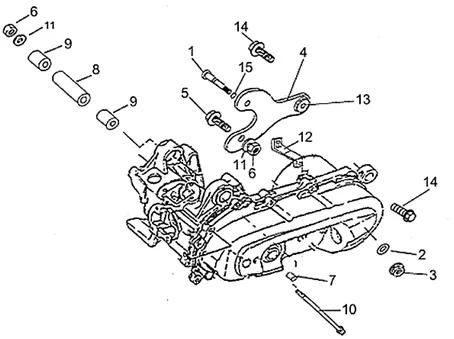

Chassis : 28.13 SUPPORT MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/308/Quasar_100_2003_28.13.PNG)
Search
3 |
AP8910375 - DADO M8 More informationQuantity required : 1 |
All the exploded views of this vehicle
