Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 Primavera 50 4T 3V ie ABS E5 Mickey Mouse 2023
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

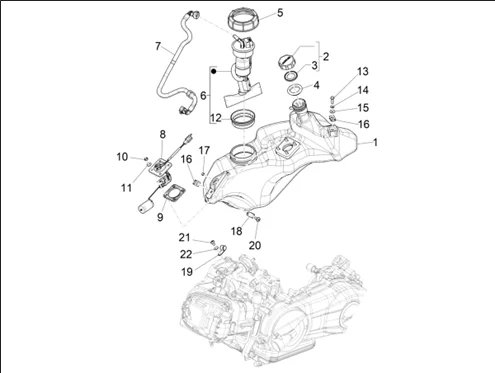

Châssis - parties plastiques - carrosseries : 02.47 RESERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1261/_Primavera_50_4T_3V_ie_ABS_E5_Mickey_Mouse_2023__02.47.png)
1 |
1B010003 - RESERVOIR CARBURANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/8/img/68308.jpg)
2 |
FUEL CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -656022 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.jpg)
3 |
656021 - JOINT More informationQuantity required : 1 |
||||||
|
4 |
1B004806 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
5 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
|
6 |
1R000546 - GROUPE POMPE A CARBURANT COMPLET More informationQuantity required : 1 |
||||||
|
7 |
1B005392R - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
8 |
680057 - INDICATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/6/4/img/109364.jpg)
9 |
676200 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
709116 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
11 |
006125 - RONDELLE S00612500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
12 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
13 |
018639 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
14 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
15 |
013880 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
|
17 |
1B000285 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
18 |
573918 - COLLIER More informationQuantity required : 1 |
||||||
|
19 |
1B001026 - COLLIER More informationQuantity required : 1 |
||||||
|
20 |
018509 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
21 |
CM179301 - VIS More informationQuantity required : 1 |
||||||
|
22 |
709141 - ECROU More informationQuantity required : 1 |
