Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 3070) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

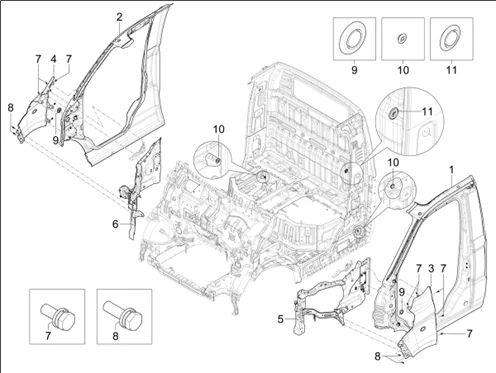

04_châssis - carrosseries : 04.03 03_CHÂSSIS/CAISSE LATÉRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1174/Porter_NP6_(SW_3070)_M.Y._2022_04.03.png)
1 |
WL0500101218A0 - CARENAGE GAUCHE More informationQuantity required : 1 |
|||||||||
|
2 |
WET50A400200A0 - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/6/6/img/173366.jpg)
3 |
WC450A050300A0 - FLANC DE CARENAGE GAUCHE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/6/7/img/173367.jpg)
4 |
WC450A050400A0 - FLANC DE CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
5 |
WL050010023AA0 - PANNEAU GAUCHE HABITACLE More informationQuantity required : 1 |
|||||||||
|
6 |
WL050010023VA0 - PANNEAU DROIT COMPARTIMENT AVANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/8/5/3/1/img/218531.jpg)
6 |
PANNEAU DROIT COMPARTIMENT AVANT CABINE ORIGINE PIAGGIO PORTER NP6 2021> -WL050010023VA07L More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/9/9/img/173199.jpg)
7 |
WQ146B0616F61 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/7/0/img/173370.jpg)
8 |
WQ146B0620F62 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/7/7/img/173477.jpg)
9 |
WB1113512 - BOUCHON EN CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
|
10 |
WB1111012 - BOUCHON EN CAOUTCHOUC More informationQuantity required : 2 |
|||||||||
|
11 |
W1B14881207001 - BOUCHON EN CAOUTCHOUC More informationQuantity required : 1 |
|||||||||
