Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 3070) ICE - 2025
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

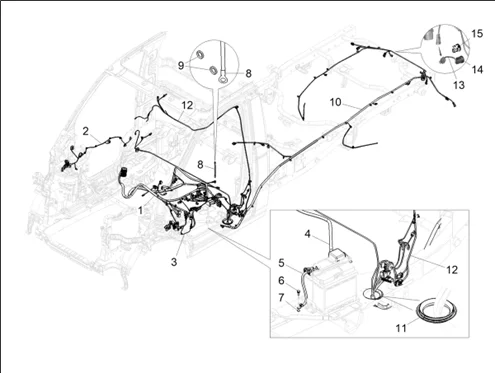

11_circuit électrique : 11.07 07_INSTALLATION ÉLECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1256/Porter_NP6_(SW_3070)_ICE_-_2025_11.07.png)
1 |
WET362040101A0 - CABLAGE MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
WET37400000024 - PASSENGER DOOR WIRING HARNESS W/EL.MIRR More informationQuantity required : 1 |
||||||
|
2 |
WET37400000026 - PASSENGER DOOR WIRING HARNESS W/O MIRRO More informationQuantity required : 1 |
||||||
|
3 |
WET37400000023 - DRIVER DOOR WIRING HARNESS W/ EL.MIRROR More informationQuantity required : 1 |
||||||
|
3 |
WET37400000025 - DRIVER DOOR WIRING HARNESS W/O MIRRORS More informationQuantity required : 1 |
||||||
|
4 |
WET362020101A0 - BATTERY POSITIVE CABLE More informationQuantity required : 1 |
||||||
|
5 |
WET362020300A0 - BATTERY NEGATIVE CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/3/7/0/img/173370.jpg)
6 |
WQ146B0620F62 - VIS AVEC DOUBLE RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
WQ41206F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 1 |
||||||
|
8 |
WC336200000001 - CABLE DE MASSE DU MOTEUR More informationQuantity required : 1 |
||||||
|
9 |
WQ41210F62 - EXTERNAL TOOTH LOCKING WASHER More informationQuantity required : 2 |
||||||
|
10 |
|
||||||
|
11 |
WC3362080001A0 - U-SHAPE TRIM STRIP More informationQuantity required : 1 |
||||||
|
12 |
WET374040102A0 - ROOF WIRING HARNESS More informationQuantity required : 1 |
||||||
|
13 |
WET37400000034 - USS ADAS WIRING HARNESS (PIGTAIL) More informationQuantity required : 4 |
||||||
|
14 |
WET38700000005 - ADAS - USS More informationQuantity required : 4 |
||||||
|
15 |
WET38700000006 - ADAS - USS REAR BRACKET More informationQuantity required : 4 |
