Vehicle Exploded View - PIAGGIO VU PORTER NP6 1500 Porter NP6 (SW 2650) M.Y. 2022
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

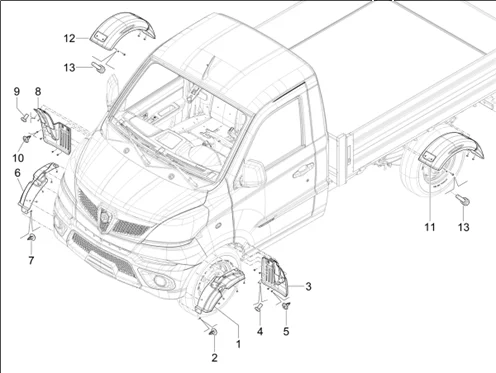

05_châssis - plastiques : 05.04 04_LOGEMENT ROUE-GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1173/Porter_NP6_(SW_2650)_M.Y._2022_05.04.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/3/img/173503.jpg)
1 |
WL0543024019A0 - LH FRONT UPPER FENDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/4/8/3/img/173483.jpg)
2 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/4/img/173504.jpg)
3 |
WL0543024015A0 - LH FRONT UNDER MUD GUARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/5/img/173505.jpg)
4 |
WQ2140612F62 - CROSS RECESSED PAN HEAD SCREW M6X12 More informationQuantity required : 2 |
||||||
|
5 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/6/img/173506.jpg)
6 |
WL0543024020A0 - RH FRONT UPPER FENDER More informationQuantity required : 1 |
||||||
|
7 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/5/0/7/img/173507.jpg)
8 |
WL0543024016A0 - RH FRONT UNDER MUD GUARD More informationQuantity required : 1 |
||||||
|
9 |
WQ2140612F62 - CROSS RECESSED PAN HEAD SCREW M6X12 More informationQuantity required : 2 |
||||||
|
10 |
WC3531010002A0 - BOUTON PRESSION DE FIXATION More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
13 |
CM288916 - VIS More informationQuantity required : 8 |
