Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 E6-C 2015-2020
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

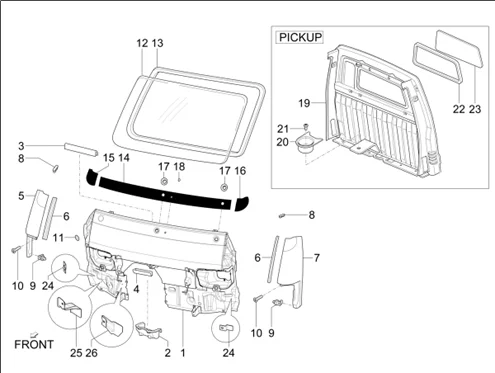

Châssis - parties plastiques - carrosseries : 02.25 PARE-BRISE - GLACES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1212/Porter_Multitech_E6_E6-C_2015-2020_02.25.png)
2 |
D8723987Z02 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/5/1/img/111451.jpg)
3 |
D5574187Z01 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/3/9/img/112539.jpg)
4 |
565195 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/6/img/117426.jpg)
5 |
5660835 - AILE AVD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/8/0/img/112680.jpg)
6 |
5382387Z01130 - PROTECTION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/4/img/117424.jpg)
7 |
LEFT FRONT PANEL "PIAGGIO GENUINE PARTS" PORTER -566845 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/9/7/img/110697.jpg)
8 |
D5382187Z01 - PROTECTION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/6/7/img/110367.jpg)
9 |
D9004467076 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/4/6/img/110546.jpg)
10 |
9004159230000 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.jpg)
11 |
D9004874004 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/4/4/0/img/123440.jpg)
12 |
WIND SHIELD "PIAGGIO GENUINE PART" PORTER -B007324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/3/6/0/img/120360.jpg)
13 |
FRONT WINDSHIELD STRIP "PIAGGIO GENUINE PART" PORTER -5612187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/4/0/img/119140.jpg)
14 |
STICKER - BELOW WINDSCREEN "PIAGGIO GENUINE PART" PIAGGIO PORTER -B000883 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/3/0/img/113730.jpg)
15 |
B000882 - PROTECTION AV DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/3/4/img/113734.jpg)
16 |
B000881 - PROTECTION AV GAUCHE More informationQuantity required : 1 |
||||||
|
17 |
B000822 - PROTECTION More informationQuantity required : 2 |
||||||
|
18 |
B000823 - PROTECTION More informationQuantity required : 1 |
||||||
|
20 |
B005327 - PORTABOTTIGLIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/8/img/66288.jpg)
21 |
296170 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/1/1/0/img/119110.jpg)
22 |
REAR WINDOW GASKET "PIAGGIO GENUINE PART" PORTER PICK-UP -6483187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/1/3/img/117513.jpg)
23 |
REAR WINDOW "PIAGGIO GENUINE PART" PORTER PICK-UP -B007327 More informationQuantity required : 1 |
||||||
|
24 |
D4445787Z01 - SUPPORT More informationQuantity required : 1 |
||||||
|
25 |
BRACKET, WASHER TANK SUPPORT, RH |
||||||
|
26 |
BRACKET, WASHER TANK SUPPORT, LH |
