Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E5 Plus 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

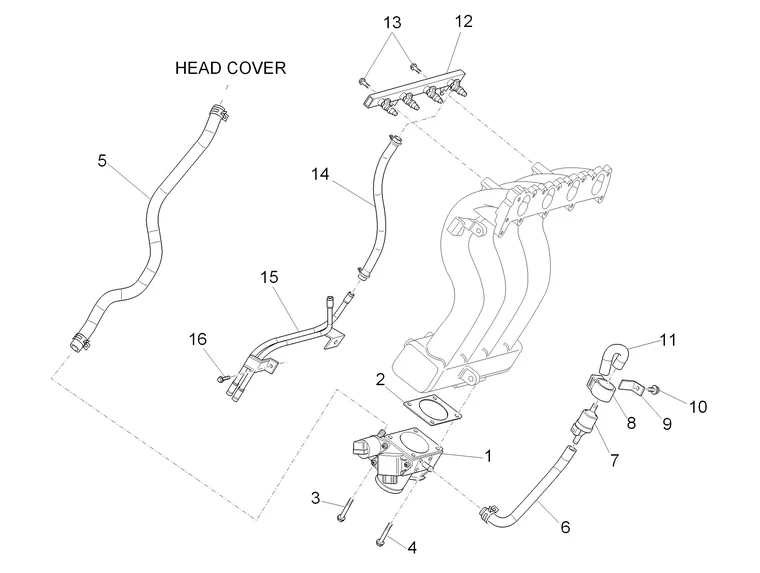

Moteur : 01.32 CORPS PAPILLON ET INJECTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/718/Porter_Multitech_E5_Plus_2014-2015_01.32.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/5/9/img/122559.jpg)
1 |
THROTTLE BODY (WITH IDLE SPEED MAGNETIC VALVE) "PIAGGIO GENUINE PART" PORTER E4 2010> -B010160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/1/6/img/112616.jpg)
2 |
B010165 - JOINT More informationQuantity required : 1 |
||||||
3 |
B010166 - BOULON More informationQuantity required : 1 |
||||||
|
4 |
B010121 - BOULON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/5/3/0/img/113530.jpg)
5 |
B010173 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/0/9/img/112609.jpg)
6 |
B010176 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/0/7/img/117207.jpg)
7 |
B010179 - SOUPAPE ADMIS More informationQuantity required : 1 |
||||||
|
8 |
B010180 - EQUERRE More informationQuantity required : 1 |
||||||
|
9 |
B010181 - EQUERRE More informationQuantity required : 1 |
||||||
|
10 |
B010182 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/7/3/6/img/111736.jpg)
11 |
B010183 - DURITE More informationQuantity required : 1 |
||||||
|
12 |
B010213 - TUBE ESSENCE More informationQuantity required : 1 |
||||||
|
13 |
B010018 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/2/2/img/114722.jpg)
14 |
B010595 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
15 |
B010596 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
16 |
B010197 - BOULON More informationQuantity required : 2 |
