Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

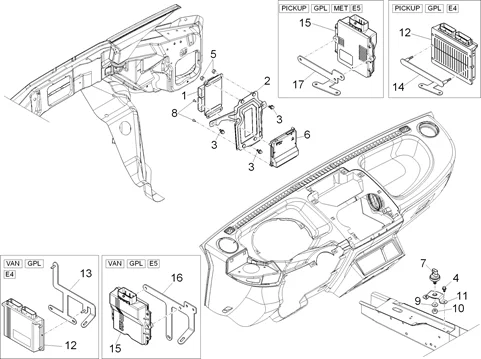

Installation électrique : 06.06 CENTRALES ÉLECTRONIQUES – CAPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/717/Porter_Multitech_E5_2013_06.06.PNG)
1 |
B005888 - CENTRALE More informationQuantity required : 1 |
||||||
|
2 |
B005226 - EQUERRE More informationQuantity required : 1 |
||||||
|
3 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
3 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
4 |
CM287314 - BOULON More informationQuantity required : 2 |
||||||
|
5 |
261322 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/1/2/img/122712.jpg)
6 |
1D000442 - CENTRALE ELECTRONIQUE DELPHINUS More informationQuantity required : 1 |
||||||
|
6 |
B005667 - CENTRALE DELPHINUS CF 3000 More informationQuantity required : 1 |
||||||
|
6 |
B007631 - CENTRALE ERIDANUS E5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/3/5/0/img/122350.jpg)
6 |
ELECTRONIC UNIT DELPHINUS "PIAGGIO GENUINE PART" PIAGGIO PORTER GAS POWERED -B007633 More informationQuantity required : 1 |
||||||
|
7 |
B005890 - SENSOR More informationQuantity required : 1 |
||||||
|
8 |
646403 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/9/img/65369.jpg)
9 |
013958 - RONDELLE S01395800 More informationQuantity required : 1 |
||||||
|
10 |
709052 - ECROU More informationQuantity required : 1 |
||||||
|
11 |
B006056 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/8/6/5/img/123865.jpg)
12 |
ELECTRONIC UNIT L.P.G. "PIAGGIO GENUINE PART" PORTER LPG 2010> E4 -B005739 More informationQuantity required : 1 |
||||||
|
13 |
B007370 - SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
659740 - SUPPORT More informationQuantity required : 1 |
||||||
|
15 |
ELECTRONIC UNIT L.P.G. "PIAGGIO GENUINE PART" PORTER 4E 2010>2015 -B005773- More informationQuantity required : 1 |
||||||
|
15 |
B007957 - CENTRALE ECU SEQUENT P&D ARIES CNG More informationQuantity required : 1 |
||||||
|
16 |
B005771 - SUPPORT More informationQuantity required : 1 |
||||||
|
17 |
B005770 - SUPPORT More informationQuantity required : 1 |
