Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 0 Porter Maxxi Multitech E5 2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

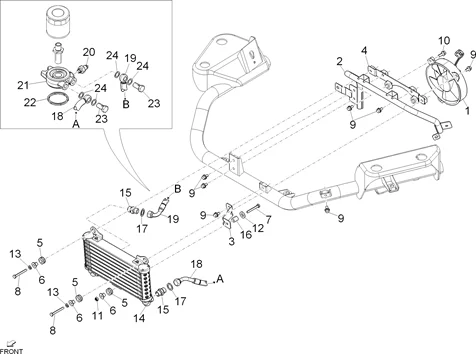

Châssis - parties plastiques - carrosseries : 02.48 REFROIDISSEUR D'HUILE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/698/Porter_Maxxi_Multitech_E5_2013_02.48.PNG)
1 |
622055 - ELECTROVENTILATEUR More informationQuantity required : 1 |
||||||
|
2 |
B006181 - SUPPORT RADIATEUR More informationQuantity required : 1 |
||||||
|
3 |
B006190 - EQUERRE More informationQuantity required : 1 |
||||||
|
4 |
B006191 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
5 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
6 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 3 |
||||||
|
7 |
030057 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
8 |
031092 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
9 |
CM287314 - BOULON More informationQuantity required : 7 |
||||||
|
10 |
BOULON |
||||||
|
11 |
709116 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
12 |
013777 - RONDELLE S01377700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
|
14 |
B007150 - RADIATEUR HUILE More informationQuantity required : 1 |
||||||
|
15 |
GU01161331 - REDUCTION More informationQuantity required : 2 |
||||||
|
16 |
B006194 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
17 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD -GU01154230 More informationQuantity required : 2 |
||||||
|
18 |
B010739 - TUBE HUILE More informationQuantity required : 1 |
||||||
|
19 |
B010740 - TUBE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/0/img/70730.jpg)
20 |
TEMPERATURE SENSOR "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006> -880325 More informationQuantity required : 1 |
||||||
|
21 |
B011057 - ADAPTEUR PARE-POUSSIER More informationQuantity required : 1 |
||||||
|
22 |
B010723 - JOINT More informationQuantity required : 1 |
||||||
|
23 |
B011020 - RACCORD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/2/img/110282.jpg)
24 |
224644 - JOINT More informationQuantity required : 4 |
