Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 0 Porter Maxxi D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

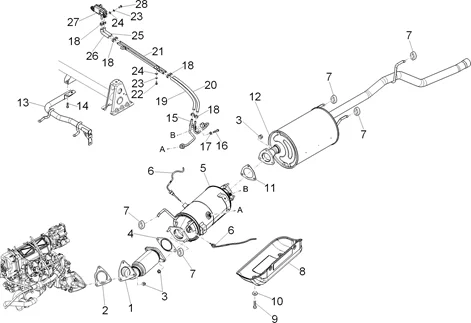

Moteur : 01.37 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/696/Porter_Maxxi_D120_E5_2010-2015_01.37.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/0/2/6/img/123026.jpg)
1 |
REAR EXHAUST PIPE "PIAGGIO GENUINE PART" PORTER DIESEL 2010> -B007423 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/1/3/img/112613.jpg)
2 |
B004734 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
3 |
NUT - FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015341 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/6/6/img/112566.jpg)
4 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" PORTER DIESEL -B007316 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/3/4/8/img/124348.jpg)
5 |
B007434 - TUYAU CONVERTISSEUR PLEIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/9/4/img/121494.jpg)
6 |
SENSOR FOR CATHALIZER TEMPERATURE "PIAGGIO GENUINE PART" PORTER DIESEL -B005438 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/9/img/113419.jpg)
7 |
SILENTBLOC FOR EXHAUST "PIAGGIO GENUINE PART" PORTER -1756787Z03000 More informationQuantity required : 7 |
||||||
8 |
B005441 - PARE-CHALEUR More informationQuantity required : 1 |
||||||
|
9 |
658848 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/2/img/69132.jpg)
10 |
834951 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/4/2/img/112242.jpg)
11 |
B004417 - JOINT More informationQuantity required : 1 |
||||||
|
12 |
B007431 - TUBE ECHAPP. More informationQuantity required : 1 |
||||||
|
13 |
B005828 - SUPPORT More informationQuantity required : 1 |
||||||
|
14 |
D9165160618 - BOULON More informationQuantity required : 4 |
||||||
|
15 |
B004196 - TUBE DE PRESSION More informationQuantity required : 4 |
||||||
|
16 |
658848 - VIS More informationQuantity required : 1 |
||||||
|
17 |
834951 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
18 |
CM001914 - COLLIER More informationQuantity required : 8 |
||||||
|
19 |
B007899 - TUYAU DE PRESSION More informationQuantity required : 1 |
||||||
|
20 |
B007900 - TUYAU DE PRESSION More informationQuantity required : 1 |
||||||
|
21 |
B004197 - TUYAU DE PRESSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
22 |
031056 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
23 |
006078 - RONDELLE S00607800 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
24 |
006975 - RONDELLE S00697500 More informationQuantity required : 4 |
||||||
|
25 |
B004198 - TUYAU DE PRESSION More informationQuantity required : 1 |
||||||
|
26 |
B004199 - TUYAU DE PRESSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/0/8/img/122808.jpg)
27 |
SENSOR FOR EXHAUST PRESSURE "PIAGGIO GENUINE PART" PORTER DIESEL -660614 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
28 |
1A003109 - VIS M5X16 More informationQuantity required : 2 |
