Vehicle Exploded View - APRILIA PEGASO 125 1991-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

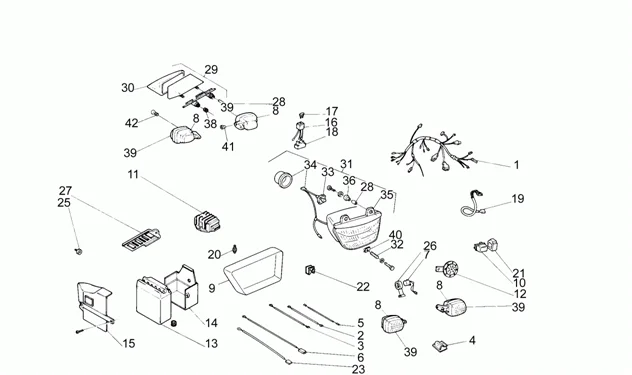

Chassis : 14 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/302/Pegaso_125_1991-1994_14.PNG)
2 |
AP8112375 - CABLE DE MASSE More informationQuantity required : 1 |
||||||
|
3 |
AP8112458 - CABLAGE NEGATIF BATT. More informationQuantity required : 1 |
||||||
|
4 |
AP8120581 - SUPPORT GAINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
7 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235- More informationQuantity required : 1 |
||||||
|
8 |
AP8112687 - INDICATEUR DIRECTION More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/8/img/45858.jpg)
10 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, CLASSIC -AP8112523- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/0/img/45890.jpg)
11 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" APRILIA 125 PEGASO 1991>1994, RS 1996>1998 -AP8112846- More informationQuantity required : 1 |
||||||
|
12 |
AP8112413 - KLAXON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/1/6/img/67316.jpg)
13 |
BATTERY YUASA 12V/9AH YB9-B "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY -584810- More informationQuantity required : 1 |
||||||
|
16 |
AP8112174 - PORTE FUSIBLE (PL) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.JPG)
17 |
CM225715 - FUSIBLE More informationQuantity required : 1 |
||||||
|
18 |
AP8120584 - C/C SUPPORT FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/4/4/img/56244.jpg)
19 |
STOP SWITCH+WIRING "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, CLASSIC, TUONO, 125 PEGASO, TUONO, 600-650 PEGASO -AP8212196- More informationQuantity required : 1 |
||||||
|
20 |
AP8101446 - SONDE DE TEMPERATURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
22 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 10 |
||||||
|
23 |
AP8112491 - CABLAGE RELAIS-DEMARR. More informationQuantity required : 1 |
||||||
|
25 |
AP8120459 - SILENTBLOC More informationQuantity required : 2 |
||||||
|
26 |
AP8120614 - SUPPORT CENTRALE CLIGNO More informationQuantity required : 1 |
||||||
|
27 |
AP8120669 - PLAQUE DE CONNEXION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
28 |
AP8121718 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/9/img/45859.jpg)
29 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG -AP8112531- More informationQuantity required : 1 |
||||||
|
30 |
AP8112633 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
32 |
AP8121818 - RESSORT More informationQuantity required : 1 |
||||||
|
34 |
AP8112770 - FAISCEAU PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/5/img/46595.jpg)
36 |
AP8120275 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
38 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
39 |
AP8112756 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.JPG)
40 |
AP8202449 - CLIP X VITE AUTOFIL.D.4,2 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
41 |
AP8121795 - DOUILLE EN T More informationQuantity required : 4 |
